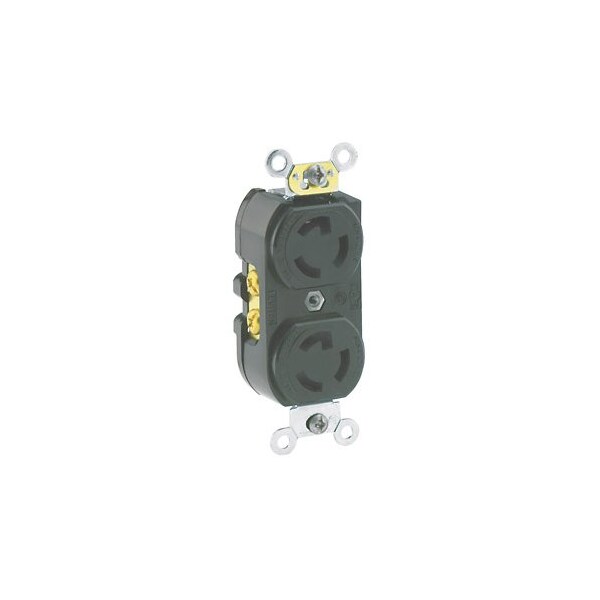

Leviton LockingReceptacle, 15A, 2hp, 277VAC, Black 4750 - main

LockingReceptacle, 15A, 2hp, 277VAC, Black

  • Mfr # 4750

  • Zoro # G222586440

product price:  $61.99
/ea

Key Features

Maximum Operating Temperature
60 Degrees C
Resistance Properties
Heat Resistant
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Number of Wires
3
NEMA Receptacle Configuration
L7-15R
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
4750
Zoro #
G222586440
UPC #
-
Country of Origin
Mexico

Dimensions

Minimum Wire Size
18 AWG
Face Plate Height
2.77 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.75 in

Details

Maximum Operating Temperature
60 Degrees C
Resistance Properties
Heat Resistant
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Number of Wires
3
NEMA Receptacle Configuration
L7-15R
IP Rating
Not Rated
Market
Industrial
Item
Locking Receptacle
Horsepower Rating
2 hp
Phase
Single
Number of Gangs
1
Voltage Rating
277V AC
UL 94 Flammability Rating
V-2
Connection Orientation
Straight
Hub Type
Dead End
Shrouded
Yes
Midget Locking
No
Flange Type
Non-Flanged
Housing Color
Black
Wire Connection Type
Screw Terminals
For Environment
Industrial
Series
Insulgrip
Contact Material
Brass
NEMA Enclosure Rating
Not Rated
Current Rating
15 A
Cover Type
No Cover
Housing Material
Nylon
Mount Type
Flush
Features
Built to Provide Unparalleled Quality and Superior Performance, Flexibility
Number of Outlets
1
Number of Poles
2
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 15 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L7-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover
