Shop LEVITON

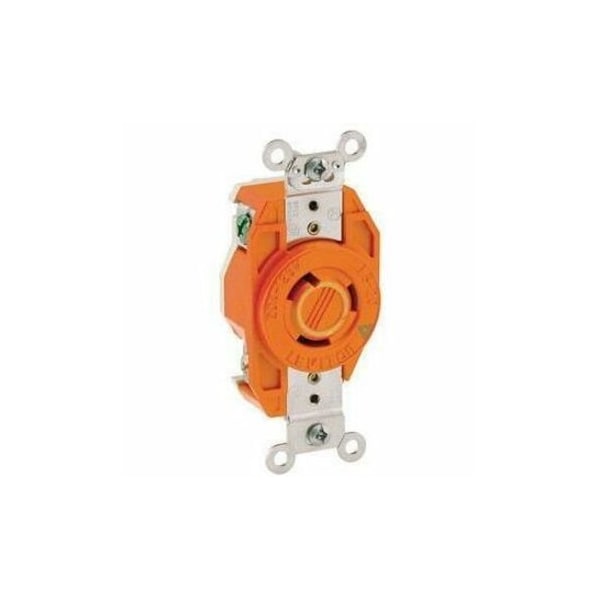

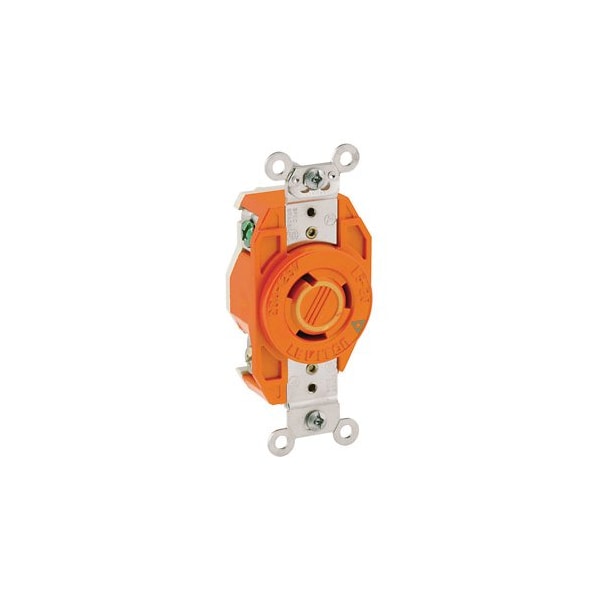

LockingReceptacle, 20A, 125VAC, Orange

  • Mfr # 2310-IG

  • Zoro # G422587971

product price:  $43.95
/ea

Key Features

NEMA Receptacle Configuration
L5-20R
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Market
Industrial
Features
Provide a "Clean" Equipment Ground Path
Flange Type
Non-Flanged
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2310-IG
Zoro #
G422587971
UPC #
78477801116
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.75 in
Maximum Wire Size
8 AWG
Minimum Wire Size
14 AWG
Face Plate Height
2.67 in
Face Plate Width
1.69 in
Face Diameter
1.56 in
Overall Depth
1.31 in

Details

NEMA Receptacle Configuration
L5-20R
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec WC-596 File E13399
Market
Industrial
Item
Locking Receptacle
Features
Provide a "Clean" Equipment Ground Path
Flange Type
Non-Flanged
Contact Material
Brass
Series
Hubbell-PRO
Housing Color
Orange
Housing Material
Valox
Number of Poles
2
Phase
Single
For Environment
Industrial
Cover Type
No Cover
Hub Type
Dead End
Connection Orientation
Straight
Number of Wires
3
Mount Type
Flush
Minimum Operating Temperature
-40 Degrees C
IP Rating
Not Rated
Horsepower Rating
1 hp
Midget Locking
No
NEMA Enclosure Rating
Not Rated
Shrouded
Yes
Maximum Operating Temperature
60 Degrees C
Current Rating
20 A
Wire Connection Type
Screw Terminals
Voltage Rating
125V AC
UL 94 Flammability Rating
V-0
Grounding
Isolated Ground
Number of Outlets
2
Number of Gangs
1

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 20 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Orange, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 125V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
