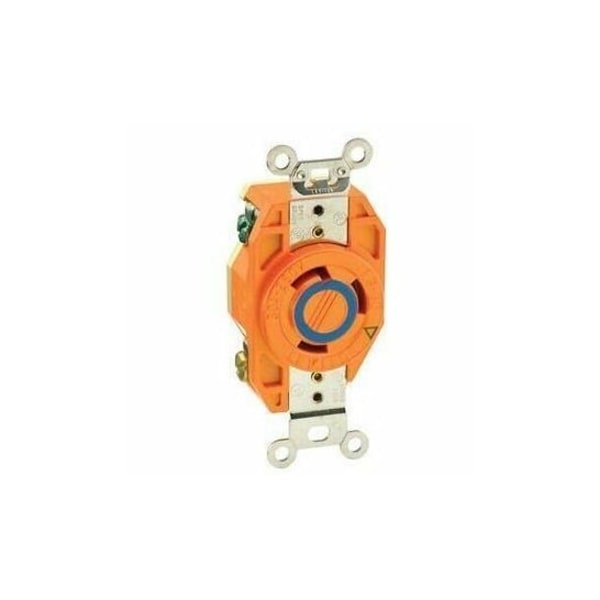

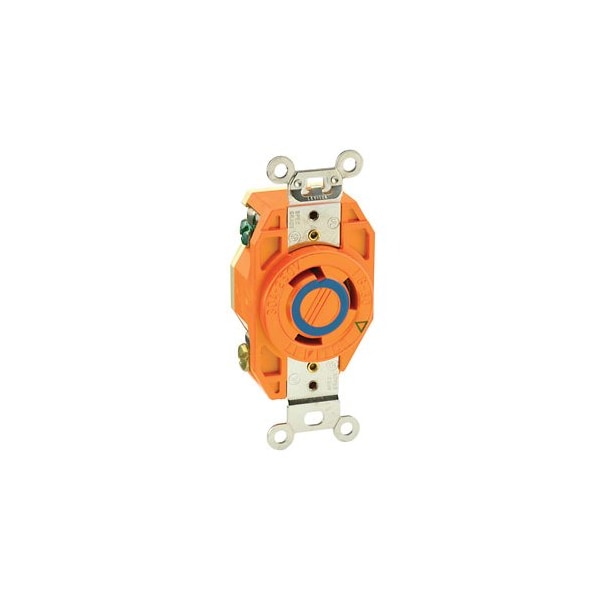

Leviton LockingReceptacle, 30A, 2hp, 250VAC, Orange 2620-IG - main

LockingReceptacle, 30A, 2hp, 250VAC, Orange

  • Mfr # 2620-IG

  • Zoro # G022587135

product price:  $64.25
/ea

Key Features

Cover Type
No Cover
Housing Material
Valox
Minimum Operating Temperature
-40 Degrees C
Voltage Rating
250V AC
Horsepower Rating
1 hp
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
2620-IG
Zoro #
G022587135
UPC #
78477809501
Country of Origin
Mexico

Dimensions

Face Plate Width
1.69 in
Maximum Wire Size
8 AWG
Face Diameter
1.56 in
Face Plate Height
2.67 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.75 in
Overall Depth
1.31 in

Details

Cover Type
No Cover
Housing Material
Valox
Minimum Operating Temperature
-40 Degrees C
Voltage Rating
250V AC
Item
Locking Receptacle
Horsepower Rating
1 hp
Wire Connection Type
Screw Terminals
Hub Type
Dead End
Features
Provide a "Clean" Equipment Ground Path
Number of Poles
2
UL 94 Flammability Rating
V-0
Midget Locking
No
Market
Industrial
NEMA Enclosure Rating
Not Rated
Phase
Single
Connection Orientation
Straight
Mount Type
Flush
Grounding
Isolated Ground
For Environment
Industrial
Maximum Operating Temperature
60 Degrees C
Current Rating
30 A
NEMA Receptacle Configuration
L6-30R
Number of Outlets
2
Shrouded
Yes
Number of Wires
3
Number of Gangs
1
Series
Hubbell-PRO
Housing Color
Orange
Flange Type
Non-Flanged
IP Rating
Not Rated
Standards
ANSI C-73, CSA C22.2 No. 42, NEMA WD-1 and WD-6, NOM 057, UL 498, UL Fed Spec WC-596
Contact Material
Brass

Description

Locking Receptacle, Connection Orientation Straight, Current Rating 30 A, Flange Shape Not Applicable, Flange Type Non-Flanged, Housing Color Orange, Housing Material Valox, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration L6-30R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Shrouded Yes, Voltage Rating 250V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Cover Type No Cover, Face Diameter 1.56 in
