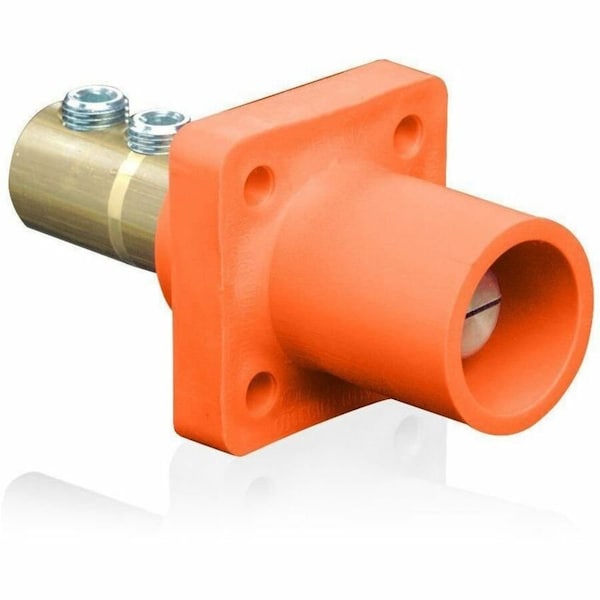

Male Receptacle
Mfr # 16R21-UO
Zoro # G915866910
product price:Â $49.49
/eaKey Features
Current Rating
400 A
Standards
CSA Standard : 1691, UL 1691
Voltage Rating
600V AC, 600V DC
Terminal Connection Type
Double Set Screw
For Location
Indoor, Outdoor
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R21-UO
- Zoro #
- G915866910
- UPC #
- 078477716793
- Country of Origin
- Mexico
Dimensions
- Overall Length
- 2.66 in
- Flange Width
- 0.5 in
- Maximum Wire Size
- 4/0 AWG
- Overall Width
- 2.28 in
- Flange Height
- 2.28 in
- Minimum Wire Size
- 2/0 AWG
- Wire Rope Length
- 2.66 in
Details
- Item
- Single Pole Receptacle
- Current Rating
- 400 A
- Standards
- CSA Standard : 1691, UL 1691
- Voltage Rating
- 600V AC, 600V DC
- Terminal Connection Type
- Double Set Screw
- For Location
- Indoor, Outdoor
- Flange Shape
- Square
- End Type
- Taper Nose
- Gender
- Male
- Housing Material
- Santoprene TPV
- Connection Orientation
- Angled
- NEMA Enclosure Rating
- 3R
- Contact Material
- Brass
- Phase
- Single
- Housing Color
- Orange
- Mounting Style
- Through Hole Mounting
- Series
- 16
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards CSA Standard : 1691, UL 1691, Terminal Connection Type Double Set Screw
