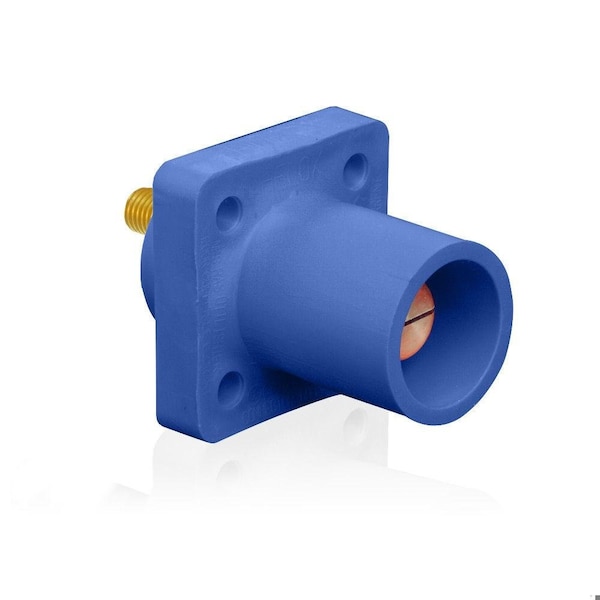

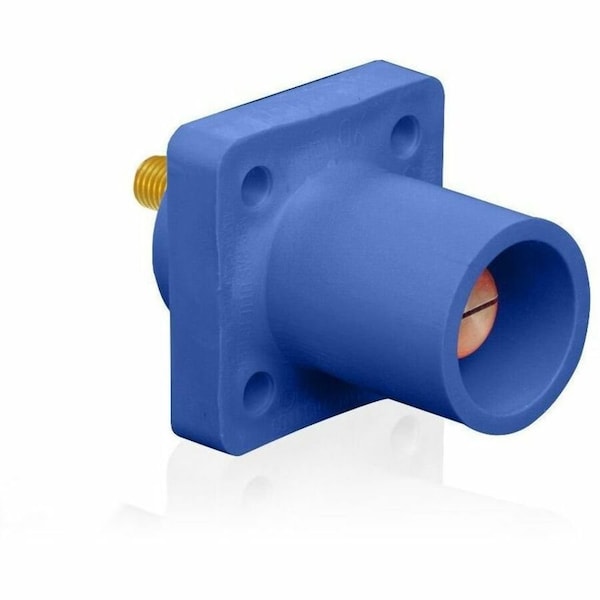

Male Receptacle
Mfr # 16R23-UB
Zoro # G215867020
product price: $37.99
/eaKey Features
Voltage Rating
600V AC, 600V DC
Current Rating
400 A
Standards
UL 1691
Maximum Wire Size
4/0 AWG
Flange Height
2.28 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R23-UB
Zoro #
G215867020
UPC #
078477716908
Country of Origin
Mexico
Dimensions
Maximum Wire Size
4/0 AWG
Flange Height
2.28 in
Overall Length
3.44 in
Overall Width
2.28 in
Minimum Wire Size
2 AWG
Stud Thread Size
1/2"-13
Flange Width
0.5 in
Details
Voltage Rating
600V AC, 600V DC
Current Rating
400 A
Standards
UL 1691
Item
Single Pole Receptacle
Mounting Style
Threaded Mounting
Connection Orientation
Straight
Terminal Connection Type
Threaded Stud
For Location
Indoor, Outdoor
Phase
Single
Housing Color
Blue
End Type
Taper Nose
Housing Material
Santoprene TPV
Gender
Male
Contact Material
Brass
NEMA Enclosure Rating
3R
Flange Shape
Square
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.28 in, Flange Shape Square, Flange Width 0.5 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
