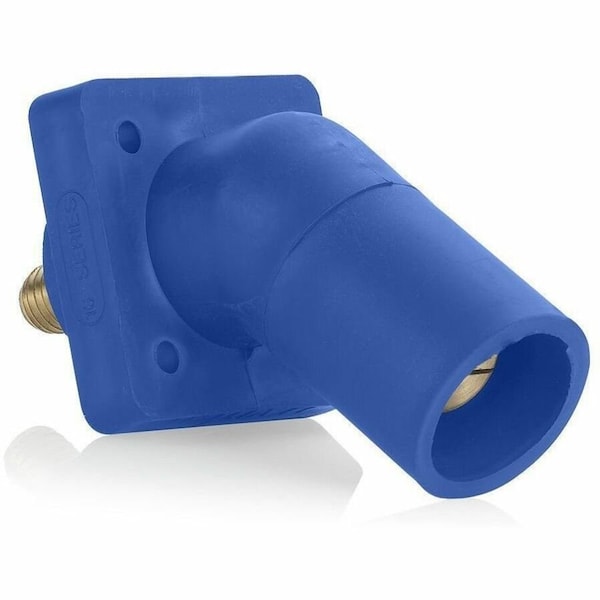

Male Receptacle
Mfr # 16R29-UB
Zoro # G415866878
product price: $70.79
/eaKey Features
Standards
UL 1691
Current Rating
400 A
Voltage Rating
600V AC, 600V DC
Minimum Wire Size
2 AWG
Overall Length
3.73 in
Get a 10% off coupon
Free 30-day returns
Return PolicyGet 30 days to pay with Net 30
Apply NowReal support from real people
Contact our U.S. based teamSpecifications
Product Information
MFR #
16R29-UB
Zoro #
G415866878
UPC #
078477718308
Country of Origin
Mexico
Dimensions
Minimum Wire Size
2 AWG
Overall Length
3.73 in
Flange Height
2.29 in
Overall Width
2.29 in
Flange Width
1.04 in
Stud Thread Size
1/2"-13
Maximum Wire Size
4/0 AWG
Details
Standards
UL 1691
Current Rating
400 A
Item
Single Pole Receptacle
Voltage Rating
600V AC, 600V DC
NEMA Enclosure Rating
3R
Housing Color
Blue
Housing Material
Santoprene TPV
Terminal Connection Type
Threaded Stud
For Location
Indoor, Outdoor
End Type
Taper Nose
Phase
Single
Mounting Style
Threaded Mounting
Gender
Male
Connection Orientation
Angled
Contact Material
Brass
Flange Shape
Square
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Phase Single, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Diameter Not Applicable, Flange Height 2.29 in, Flange Shape Square, Flange Width 1.04 in, NEMA Enclosure Rating 3R, Standards UL 1691, Terminal Connection Type Threaded Stud, For Location Indoor, Outdoor
