  11. Mod Recept, Bwn, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

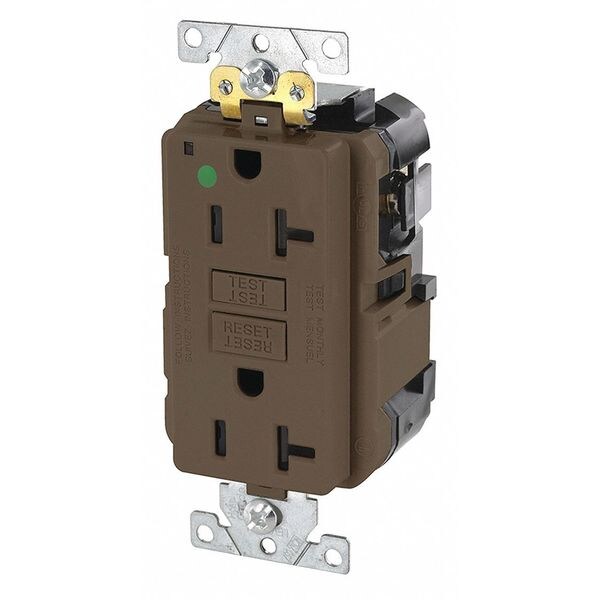

Leviton Mod Recept, Bwn, 20 A, GFCI, 2P3W, Bk;Sd, 1PK MGFN2-HG - main

Mod Recept, Bwn, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # MGFN2-HG

  • Zoro # G604392874

product price: $34.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HG
Zoro #
G604392874
UPC #
07847772446
Country of Origin
China

Dimensions

Overall Depth
1.2 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Number of Outlets
2
Housing Color
Brown
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Voltage
125 VAC
Color - Plugs and Receptacles
Brown
Tamper Resistant
No
Self-Testing
Yes
Wiring Method - Plugs and Receptacles
Back and Side
HP
1 hp
Voltage - Plugs and Receptacles
125V
Power Indicator
Yes
Item - Plugs and Receptacles
GFCI Receptacle
Surge Suppression
Yes
Wiring Method
Back, Side
Application Environment
Hospital Grade
Weather Resistant - Plugs and Receptacles
No
Color
Brown
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
Amps - Plugs and Receptacles
20 A
Outlet Type - Plugs and Receptacles
Duplex
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Minimum Operating Temperature
-31 Degrees F
UL 94 Flammability Rating
V-0
Receptacle Type
Decorator Duplex
Voltage Rating
125V AC
Mount Type
Flush
Horsepower Rating
1 hp
Maximum Operating Temperature
150.8 Degrees F
Includes Mounting Hardware
Yes
Contact Material
Brass
Wire Connection Type
Modular Wiring
Self Testing
Yes
Grade
Hospital Grade Fed. Spec.
Surge Protection
Yes
Hub Type
Feed Through
Visual Indicator Lights
Power Connected
Operating Temperature
-35C to +66C
Termination
Modular (line) and Back or Side Wire (load)
Feature 3
Power Indication
Body Material
Polycarbonate
Face Material
PBT
Line Contacts
Brass
ANSI
C-73
Terminal Screws
Plated Steel
Wire
3
Ground Clips
Brass
Screw Terminal Torque
14-18 in-lbs
Pole
2
Amperage
20 A
Feed-Through Current
20 Amp
At Rated Voltage
1 HP
Terminal Clamp
Brass
Function
GFCI
Strap Material
Galvanized Steel
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Flammability
Rated V-0 per UL 94
Short Circuit Current Rating
2kA
Device Type
Duplex Receptacle Outlet
NEMA
WD-1 & WD-6

Description

Modular Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
