  11. Mod Recept, Red, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

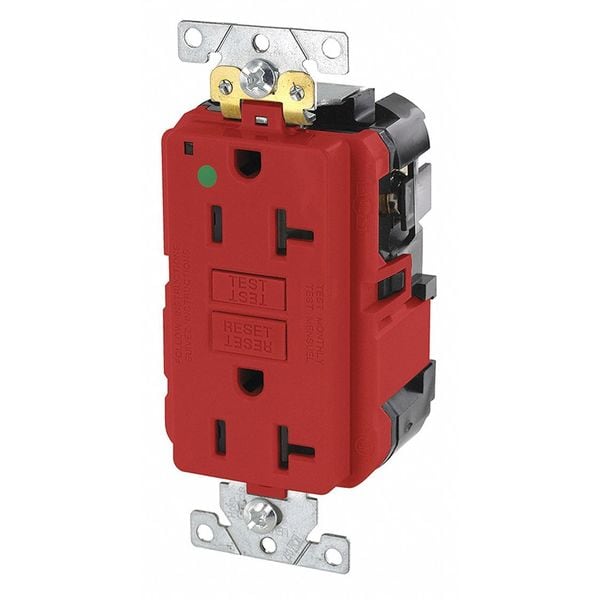

Leviton Mod Recept, Red, 20 A, GFCI, 2P3W, Bk;Sd, 1PK MGFN2-HGR - main

Mod Recept, Red, 20 A, GFCI, 2P3W, Bk;Sd, 1PK

  • Mfr # MGFN2-HGR

  • Zoro # G504392899

product price: $34.49
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HGR
Zoro #
G504392899
UPC #
07847772445
Country of Origin
China

Dimensions

Overall Depth
1.2 in
Face Plate Height
2.8 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
Phase
Single
GFCI
Yes
Grounding
Grounded
Housing Color
Red
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Color
Red
Weather Resistant - Plugs and Receptacles
No
Surge Suppression
Yes
Amps - Plugs and Receptacles
20 A
HP
1 hp
Application Environment
Hospital Grade
Item - Plugs and Receptacles
GFCI Receptacle
Power Indicator
Yes
Wiring Method
Back, Side
Outlet Type - Plugs and Receptacles
Duplex
Voltage - Plugs and Receptacles
125V
Voltage
125 VAC
Color - Plugs and Receptacles
Red
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
Wiring Method - Plugs and Receptacles
Back and Side
Self-Testing
Yes
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Tamper Resistant
No
Mount Type
Flush
UL 94 Flammability Rating
V-0
Maximum Operating Temperature
150.8 Degrees F
Contact Material
Brass
Self Testing
Yes
Receptacle Type
Decorator Duplex
Includes Mounting Hardware
Yes
Grade
Hospital Grade Fed. Spec.
Visual Indicator Lights
Power Connected
Horsepower Rating
1 hp
Wire Connection Type
Modular Wiring
Voltage Rating
125V AC
Surge Protection
Yes
Minimum Operating Temperature
-31 Degrees F
Hub Type
Feed Through
Face Material
PBT
Screw Terminal Torque
14-18 in-lbs
Ground Clips
Brass
Terminal Screws
Plated Steel
Termination
Modular (line) and Back or Side Wire (load)
Short Circuit Current Rating
2kA
Feed-Through Current
20 Amp
NEMA
WD-1 & WD-6
Body Material
Polycarbonate
Flammability
Rated V-0 per UL 94
Strap Material
Galvanized Steel
Operating Temperature
-35C to +66C
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Wire
3
Function
GFCI
At Rated Voltage
1 HP
ANSI
C-73
Terminal Clamp
Brass
Pole
2
Feature 3
Power Indication
Device Type
Duplex Receptacle Outlet
Line Contacts
Brass
Amperage
20 A

Description

Modular Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Red, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
