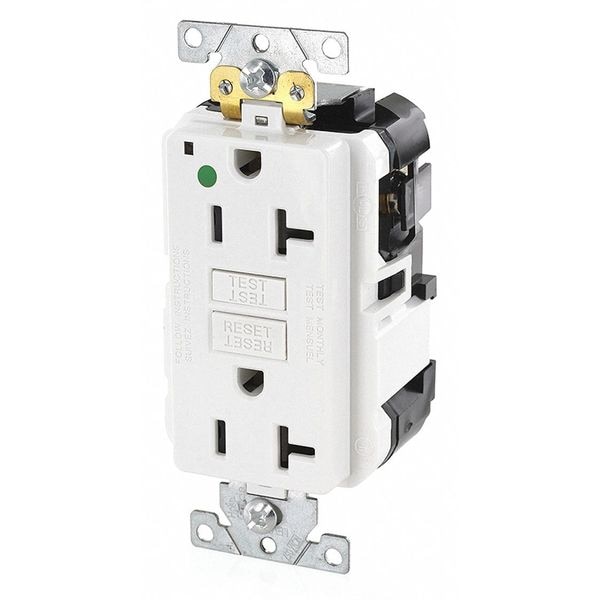

Leviton Modular Receptacle MGFN2-HGW - main

Modular Receptacle

  • Mfr # MGFN2-HGW

  • Zoro # G504392950

product price: $32.79
/ea

Key Features

Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
MGFN2-HGW
Zoro #
G504392950
UPC #
07847772444
Country of Origin
China

Dimensions

Overall Depth
1.2 in
Face Plate Width
1.3 in
Face Plate Height
2.8 in
Mount Hole Center-to-Center Height
3.3 in

Details

Item
Modular Receptacle
Connection Orientation
Straight
Cover Type
No Cover
Current Rating
20 A
GFCI
Yes
Phase
Single
Grounding
Grounded
Housing Color
White
Number of Outlets
2
Housing Material
Polycarbonate
NEMA Enclosure Rating
Not Rated
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Number of Wires
3
Polarized
Yes
Standards
ANSI C73, CSA Certified, Federal Specification, RoHS Compliant, UL Listed
Item - Plugs and Receptacles
GFCI Receptacle
Outlet Type - Plugs and Receptacles
Duplex
Self-Testing
Yes
Color - Plugs and Receptacles
White
Surge Suppression
Yes
Voltage - Plugs and Receptacles
125V
Weather Resistant - Plugs and Receptacles
No
Tamper Resistant
No
Wiring Method
Back, Side
Wiring Method - Plugs and Receptacles
Back and Side
Power Indicator
Yes
Amps - Plugs and Receptacles
20 A
Color
White
NEMA Receptacle Configuration - Plugs and Receptacles
5-20R
Application Environment
Hospital Grade
Voltage
125 VAC
Special Features
Circuit ID Label for Identification, Solid Brass Locking Pin
HP
1 hp
Self Testing
Yes
Visual Indicator Lights
Power Connected
Contact Material
Brass
UL 94 Flammability Rating
V-0
Grade
Hospital Grade Fed. Spec.
Hub Type
Feed Through
Receptacle Type
Decorator Duplex
Wire Connection Type
Modular Wiring
Minimum Operating Temperature
-31 Degrees F
Surge Protection
Yes
Mount Type
Flush
Maximum Operating Temperature
150.8 Degrees F
Horsepower Rating
1 hp
Voltage Rating
125V AC
Includes Mounting Hardware
Yes
Strap Material
Galvanized Steel
ANSI
C-73
Pole
2
Termination
Modular (line) and Back or Side Wire (load)
Ground Clips
Brass
Face Material
PBT
Applicable Standards
UL 943, UL 498, CSA C22.2 No. 42 & 144, FedSpec W-C-596
Device Type
Duplex Receptacle Outlet
Feed-Through Current
20 Amp
Wire
3
Amperage
20 A
Feature 3
Power Indication
Screw Terminal Torque
14-18 in-lbs
Terminal Screws
Plated Steel
Line Contacts
Brass
At Rated Voltage
1 HP
Function
GFCI
Short Circuit Current Rating
2kA
Terminal Clamp
Brass
Operating Temperature
-35C to +66C
Body Material
Polycarbonate
Flammability
Rated V-0 per UL 94
NEMA
WD-1 & WD-6

Description

Modular Receptacle, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI Yes, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Polycarbonate, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Decorator Duplex, Resistance Properties Not Applicable
