  11. Occ Snsr, PIR, 120-277V AC, Ivory

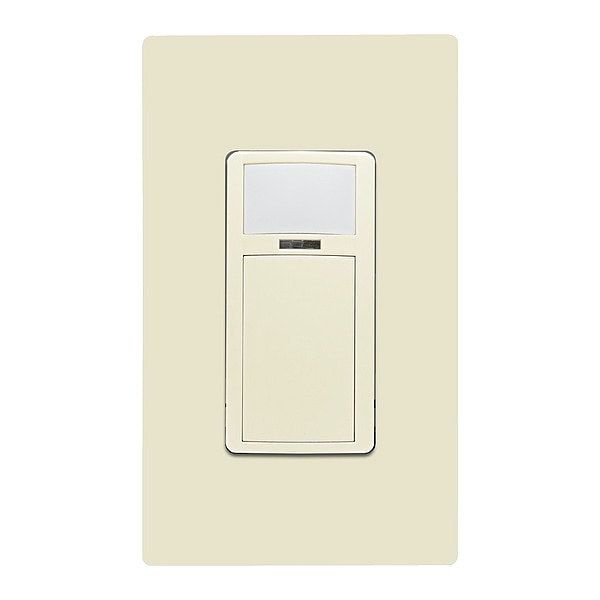

Leviton Occ Snsr, PIR, 120-277V AC, Ivory ODS15-IDI - main

Occ Snsr, PIR, 120-277V AC, Ivory

  • Mfr # ODS15-IDI

  • Zoro # G704836575

product price: $65.89
/ea

Key Features

Color
Ivory
Standards
ASHRAE 90.1, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Coverage at Suggested Mounting Height
2,100 sq ft
Sensing Technology
Passive Infrared (PIR)
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
ODS15-IDI
Zoro #
G704836575
UPC #
078477010235
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
2,100 sq ft
Overall Height
4.13 in
Overall Depth
1.86 in
Overall Width
2.12 in

Details

Item
Occupancy Sensor
Color
Ivory
Standards
ASHRAE 90.1, ETL/cETL Listed, FCC Approved, IECC, NOM, Title 24, Part 6
Operating Voltage - Motion Sensing and Dimming
120/230/277 V AC
Sensing Technology
Passive Infrared (PIR)
Communication Method - Motion Sensing and Dimming
Hard Wired
Item - Motion Sensing and Dimming
Occupancy Sensor
Color - Motion Sensing and Dimming
White
Max. Capacity @ 277VAC
4000VA (Fluorescent)
Installation Location - Motion Sensor
Wall Switch Box
Max. Capacity @ 120VAC
1800VA (Fluorescent), 1800W (Incandescent)
Coverage Angle - Motion Sensor
180 Degrees
Lighting Technology
Incandescent, LED
Voltage
120 to 277V AC
Use With - Motion Sensing and Dimming
1/4 HP Motor
Time Delay - Motion Sensor
30 sec to 30 min
Time Delay Adjustment Method - Motion Sensor
Adjustable
Maximum Detection Distance
40 ft
Coverage Type
Small Motion
Dimming Method
No Dimming
Series
Decora
Compatible with Series
Switching Only (universal)
Installation Location
Wall
Horsepower Rating
1/4 hp
Communication Method
Hard Wired
Nightlight
Yes
Neutral Required
Yes
Includes Wall Plate
Wall Plate Not Included
Manufacturer Warranty
5 yr
Minimum Operating Temperature
32 Degrees F
Minimum Time Delay
30 sec
Coverage Angle
180 Degrees
Dimming Type
No Dimming
Maximum Time Delay
30 min
Load Rating @ 120V AC
10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 5.8A FLA, 6.67A (Tungsten)
Load Rating @ 277V AC
10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 3A FLA (1/3 HP Motor), 6.67A (Tungsten)
Maximum Operating Temperature
104 Degrees F
Sensor Operation
Occupancy, Photocell, Vacancy
Includes Motion Sensor
Yes
Number of Buttons
1
Maximum Coverage Area
1,000 sq ft
Fan Rated
Yes
Rated Frequency
50/60 Hz
Includes Dimming Switch
Dimming Switch Not Included
Operating Voltage
120 to 277V AC

Description

Occupancy Sensor, Number of Buttons 1, Sensor Operation Occupancy, Photocell, Vacancy, Compatible with Series Switching Only (universal), Lighting Technology Incandescent, LED, Operating Voltage 120 to 277V AC, Sensing Technology Passive Infrared (PIR), Load Rating @ 120V AC 10A (LED/Electronic Ballast, Standard Ballast), 20A (General Purpose), 5.8A FLA, 6.67A (Tungsten), Communication Method Hard Wired, Maximum Coverage Area 1,000 sq ft, Neutral Required Yes, Color Ivory, Nightlight Yes
