Leviton

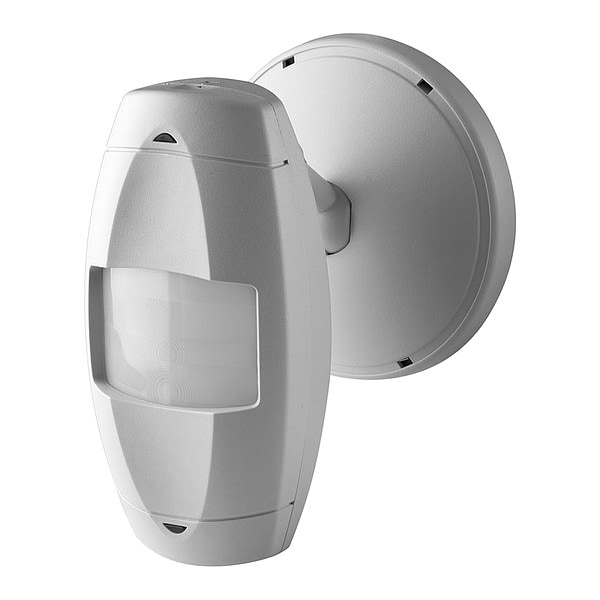

Occ Snsr, PIR, 24V DC, 1,400 sq ft

product price: $105.99
/ea
Free Shipping & Returns
Free Shipping on orders over $50
Free 30-Day Returns

Key Features

  • Communication Method - Motion Sensing and Dimming Hard Wired
  • Sensing Technology Passive Infrared (PIR)
  • Installation Location - Motion Sensor Wall
  • Coverage at Suggested Mounting Height 1,400 sq ft
  • Operating Voltage - Motion Sensing and Dimming 24 V DC
See all product information

Product Information

Dimensions

Coverage at Suggested Mounting Height 1,400 sq ft
Suggested Mounting Height - Motion Sensor 8 ft to 10 ft
Maximum Mounting Height 10 ft
Minimum Mounting Height 8 ft
Overall Depth 4.67 in
Overall Height 6.43 in

Details

Item Occupancy Sensor
Item - Motion Sensing and Dimming Occupancy Sensor
Communication Method - Motion Sensing and Dimming Hard Wired
Sensing Technology Passive Infrared (PIR)
Installation Location - Motion Sensor Wall
Operating Voltage - Motion Sensing and Dimming 24 V DC
Color - Motion Sensing and Dimming White
Time Delay - Motion Sensor 30 sec to 30 min
Time Delay Adjustment Method - Motion Sensor Automatic
Standards cUL/NOM/ANCE Listed
Description/Special Features Adjustable Swivel Neck Rotates 80 Degrees Vertically and 60 Degrees Horizontally. can be Used for Ceiling or Wall Mounting, Ambient Light Override Prevents Lights From Turning on When There is Ample Natural Light, Combines PIR Technology With a Microprocessor Based Digital Architecture. by Eliminating False Triggering, the Sensor Provides a Trouble-Free "Install and Forget" Solution for Lighting Control, Fast, Simple Installation Using 3 Color-Coded Low-Voltage Wires and a Single Mounting Post, Non-Volatile Memory Preserves All Automatic and Manual Settings During Power Outages
Color White
Includes (2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts
Time Delay Adjustment Method Automatic
Minimum Time Delay 30 sec
Minimum Operating Temperature 32 Degrees F
Communication Method Hard Wired
Maximum Coverage Area 1,400 sq ft
Maximum Time Delay 30 min
Maximum Operating Temperature 104 Degrees F
Coverage Angle 360 Degrees
Lighting Technology LED
Load Rating @ 120V AC Dependent on Control Unit Rating
Sensor Operation Occupancy, Photocell
Installation Location Wall
Manufacturer Warranty 5 yr Limited

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR), Operating Voltage 24V DC, Maximum Coverage Area 1,400 sq ft, Maximum Mounting Height 10 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes (2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts, Sensor Operation Occupancy, Photocell, Lighting Technology LED, Installation Location Wall, Standards cUL/NOM/ANCE Listed, Time Delay Adjustment Method Automatic
