  11. Occ Snsr, PIR/Usonic, 24V DC, 1,000 sq ft

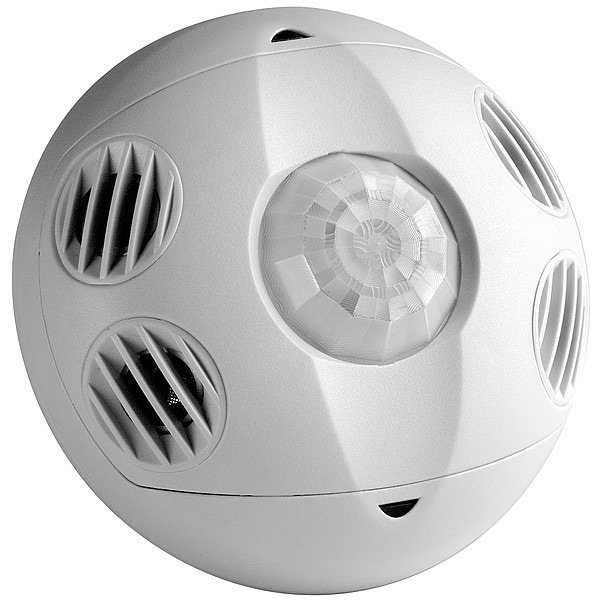

Leviton Occ Snsr, PIR/Usonic, 24V DC, 1,000 sq ft OSC10-M0W - main

Occ Snsr, PIR/Usonic, 24V DC, 1,000 sq ft

  • Mfr # OSC10-M0W

  • Zoro # G904836603

product price: $136.99
/ea
Free Shipping & Returns

Key Features

Color
White
Standards
CEC Title 24 Compliant, cUL/NOM/ANCE Listed
Operating Voltage - Motion Sensing and Dimming
24 V DC
Coverage at Suggested Mounting Height
1,000 sq ft
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSC10-M0W
Zoro #
G904836603
UPC #
078477180570
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
1,000 sq ft
Suggested Mounting Height - Motion Sensor
8 ft to 10 ft
Maximum Mounting Height
12 ft
Overall Depth
1.57 in
Minimum Mounting Height
8 ft
Overall Width
4.2 in

Details

Item
Occupancy Sensor
Color
White
Standards
CEC Title 24 Compliant, cUL/NOM/ANCE Listed
Operating Voltage - Motion Sensing and Dimming
24 V DC
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Communication Method - Motion Sensing and Dimming
Hard Wired
Item - Motion Sensing and Dimming
Occupancy Sensor
Voltage
24V DC
Includes
(1) 360 Degrees Perforated Mask, (1) Half Mask, (1) Plastic Washer, (1) Threaded Rod and Hex Nut, (2) #8-32 Washer and Nut, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw
Time Delay - Motion Sensor
30 sec to 30 min
Description/Special Features
Accurate, Ambient Light Recognition, Consistent Switching, Maximum Reliability, Non-Volatile Memory, Self-Adapting
Color - Motion Sensing and Dimming
White
Coverage Angle - Motion Sensor
360 Degrees
Time Delay Adjustment Method - Motion Sensor
Adjustable
Installation Location - Motion Sensor
Ceiling
Maximum Coverage Area
1,000 sq ft
Maximum Operating Temperature
104 Degrees F
Minimum Operating Temperature
32 Degrees F
Minimum Time Delay
30 sec
Manufacturer Warranty
5 yr Limited
Sensor Operation
Occupancy, Photocell
Communication Method
Hard Wired
Coverage Angle
360 Degrees
Load Rating @ 120V AC
Dependent on Control Unit Rating
Installation Location
Ceiling
Lighting Technology
LED
Maximum Time Delay
30 min
Operating Voltage
24V DC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Operating Voltage 24V DC, Maximum Coverage Area 1,000 sq ft, Maximum Mounting Height 12 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes (1) 360 Degrees Perforated Mask, (1) Half Mask, (1) Plastic Washer, (1) Threaded Rod and Hex Nut, (2) #8-32 Washer and Nut, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Sensor Operation Occupancy, Photocell
