  11. Occ Snsr, PIR/Usonic, 24V DC, 1,200 sq ft

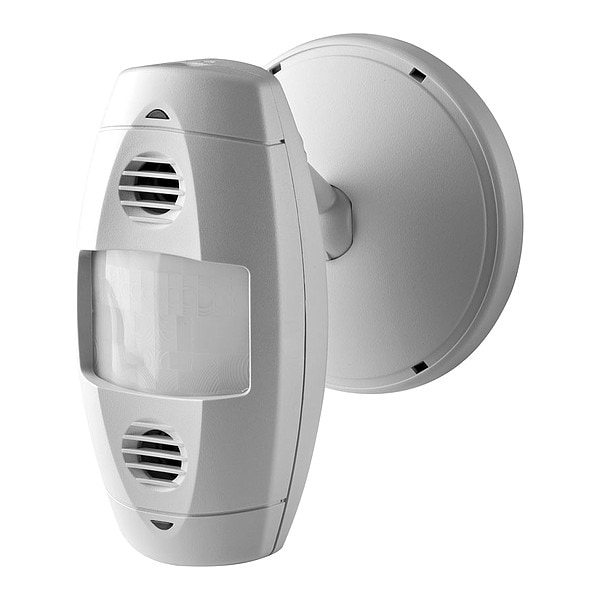

Leviton Occ Snsr, PIR/Usonic, 24V DC, 1,200 sq ft OSW12-M0W - main

Occ Snsr, PIR/Usonic, 24V DC, 1,200 sq ft

  • Mfr # OSW12-M0W

  • Zoro # G104836595

product price: $154.99
/ea
Free Shipping & Returns

Key Features

Color
White
Standards
cUL/NOM/ANCE Listed
Operating Voltage - Motion Sensing and Dimming
24 V DC
Coverage at Suggested Mounting Height
1,200 sq ft
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSW12-M0W
Zoro #
G104836595
UPC #
078477186459
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
1,200 sq ft
Suggested Mounting Height - Motion Sensor
8 ft to 10 ft
Minimum Mounting Height
8 ft
Maximum Mounting Height
10 ft

Details

Item
Occupancy Sensor
Color
White
Standards
cUL/NOM/ANCE Listed
Operating Voltage - Motion Sensing and Dimming
24 V DC
Sensing Technology
Passive Infrared (PIR)/Ultrasonic
Communication Method - Motion Sensing and Dimming
Hard Wired
Includes
(2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts
Installation Location - Motion Sensor
Corner, Wall
Item - Motion Sensing and Dimming
Occupancy Sensor
Time Delay - Motion Sensor
30 sec to 30 min
Time Delay Adjustment Method - Motion Sensor
Automatic
Voltage
24V DC
Color - Motion Sensing and Dimming
White
Description/Special Features
Adjustable Swivel Neck Rotates 80 Degrees Vertically and 60 Degrees Horizontally. can be Used for Ceiling or Wall Mounting, Ambient Light Override Prevents Lights From Turning on When There is Ample Natural Light, Combines PIR Technology With a Microprocessor Based Digital Architecture. by Eliminating False Triggering, the Sensor Provides a Trouble-Free "Install and Forget" Solution for Lighting Control, Fast, Simple Installation Using 3 Color-Coded Low-Voltage Wires and a Single Mounting Post, Non-Volatile Memory Preserves All Automatic and Manual Settings During Power Outages
Time Delay Adjustment Method
Automatic
Manufacturer Warranty
5 yr Limited
Series
OSPxx
Load Rating @ 120V AC
Dependent on Control Unit Rating
Maximum Operating Temperature
104 Degrees F
Communication Method
Hard Wired
Lighting Technology
LED
Coverage Angle
360 Degrees
Maximum Time Delay
30 min
Minimum Operating Temperature
32 Degrees F
Maximum Coverage Area
1,200 sq ft
Installation Location
Wall
Sensor Operation
Occupancy, Photocell
Minimum Time Delay
30 sec
Operating Voltage
24V DC

Description

Occupancy Sensor, Sensing Technology Passive Infrared (PIR)/Ultrasonic, Operating Voltage 24V DC, Maximum Coverage Area 1,200 sq ft, Maximum Mounting Height 10 ft, Load Rating @ 120V AC Dependent on Control Unit Rating, Communication Method Hard Wired, Color White, Includes (2) #8-32 Washer, (2) #8-32x1-1/2 in Screw, (2) #8-32x1/2 in Screw, Nuts, Sensor Operation Occupancy, Photocell, Lighting Technology LED, Installation Location Wall, Standards cUL/NOM/ANCE Listed

Restrictions

WARNING: Cancer and Reproductive Harm For more information go to www.P65Warnings.ca.gov
