Compare

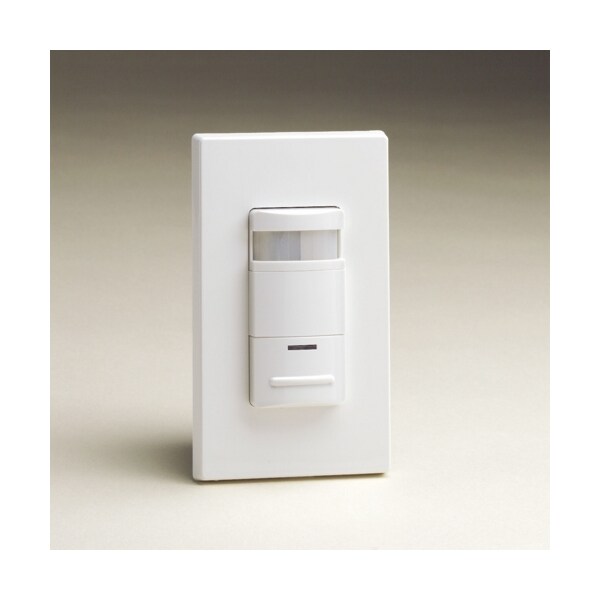

Occupancy Sensor, Pir, 2100 Sq Ft, White

Mfr # ODS15-IDW
Zoro # G3845284

$70.99

Free Shipping on orders over $50

after you

Free 30-Day Returns

Key Features

Item - Motion Sensing and Dimming Occupancy Sensor
Sensing Technology Passive Infrared
Installation Location - Motion Sensor Wall Switch Box
Coverage at Suggested Mounting Height 2100 sq. ft.
Operating Voltage - Motion Sensing and Dimming 120VAC, 277VAC

See all product information

Get 10% Off Your First Order

Real Support From Real People Contact Our U.S.-Based teams

Free 30-Day Returns

Return Policy

Accepted Payment Options

Net 30

Product Information

Brand Leviton
MFR # ODS15-IDW
Zoro # G3845284
UPC #
78477010228
Country of Origin Mexico
Category Occupancy Sensors

Dimensions

Coverage at Suggested Mounting Height	2100 sq. ft.
Height	2.38 in
Width	2.81 in
Length	5.00 in
Size	Height 4.13" (104.9mm), Width 2.12" (53.95mm), Depth 1.86" (47.25mm), Install Depth 1.42" (36.22mm)
Dimensions	46 in H x 1.75 in W x 1.83 in D

Details

Item - Motion Sensing and Dimming	Occupancy Sensor
Sensing Technology	Passive Infrared
Installation Location - Motion Sensor	Wall Switch Box
Operating Voltage - Motion Sensing and Dimming	120VAC, 277VAC
Color - Motion Sensing and Dimming	White
Time Delay Adjustment Method - Motion Sensor	Adaptive
Time Delay - Motion Sensor	30 sec. to 30 min.
Max. Capacity @ 120VAC	1800W (Incandescent), 1800VA (Fluorescent)
Item	Occupancy Sensor
Time Delay	Adaptive
Type	Occupancy Sensor;Single-Pole Switch
Color	White
Lighting Technology	Fluorescent, Incandescent
Max. Capacity @ 277VAC	4000VA (Fluorescent)
Coverage Angle - Motion Sensor	180 Degrees
Switch Type	Single-Pole
Timer Range	30 sec. to 30 min.
Installation Type	Wall
Description/Special Features	Vandal Resistant Lens
Voltage	120/277VAC
Standards	UL and cUL Listed, CA Title 24 compliant
Grade	Commercial
Includes	Photocell
Coverage	2100 sq. ft.
Sensor Type	Passive Infrared
For Use With	Fluorescent and Incandescent Lighting Loads
Watts @ 277V	4000
Viewing Angle	180 Degrees
Watts @ 120V	1800
Coverage (Sq.Ft.)	1000
Feature	App configurable
IP Rating	IP10
Pattern	180°
Testing and Code Compliance	Can be used to comply with ASHRAE 90.1, IECC and Title 24, Part 6 occupancy/vacancy sensing and dimming requirements
Sensor Technology	Passive Infrared (PIR)
Application	Small Offices, Lobbies, Small Meeting Rooms
Listings	IECC, UL and cUL listed, FCC, ICC
Neutral Wire Connection	Required
Load Rating	See Product Specification and Data Sheet
Mounting Type	Wall Switch
Product Type	Smart Sensor
Input Current	120V: Standby: 0.2W Max: 0.5W+Load Current - 277V: Standby: 0.3W Max: 0.6W+Load Current
Storage Temperature Range	-40° to 185°F (-40° to 85°C)
Frequency	50/60Hz
Mounting	Wall Switch
Frequency Rating	50/60 Hz
Lamp Type	Fluorescent/Incandescent
Response Frequency	50/60 Hz
Supply Voltage	120/230/277 VAC
Voltage Rating	120/230/277 VAC
Control Output	Manual On/Automatic Off
Standard	UL Listed;CSA Certified (24);FCC Regulations;NOM Certified
Power Rating	100/280 mW
Temperature Rating	0 to 50 °C
Environmental Conditions	Operating Temperature (0 to +50 DEG C);Storage Temperature (-10 to +85 DEG C);Humidity (20% to 90% Non-Condensing)

Description

Decora Passive Infrared Wall Switch Occupancy Sensor, 180 Degree, 2100 sq. ft. Coverage, Self-Adjusting, White
