  11. Occupant Sensor Passive Infared Cld Sto

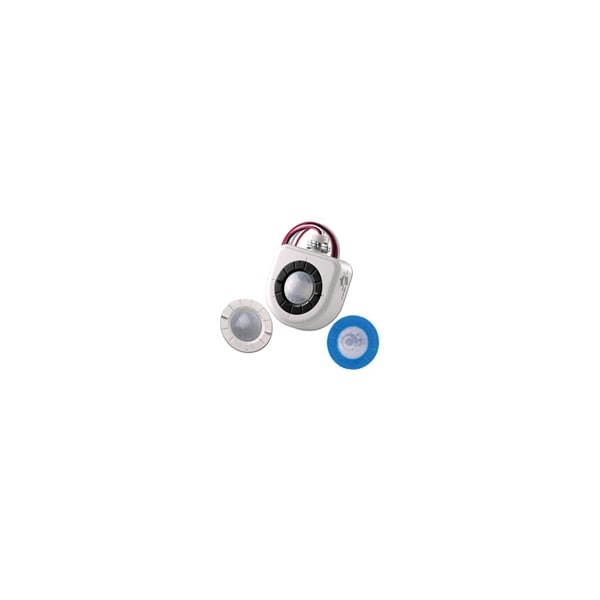

Leviton Occupant Sensor Passive Infared Cld Sto OSFHU-CTW - main

Occupant Sensor Passive Infared Cld Sto

  • Mfr # OSFHU-CTW

  • Zoro # G6267503

product price: $76.19
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Occupancy Sensor
Sensing Technology
Passive Infrared
Installation Location - Motion Sensor
Ceiling, Wall
Coverage at Suggested Mounting Height
1600 sq. ft.
Operating Voltage - Motion Sensing and Dimming
120VAC, 277VAC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Unlock tax-exempt savings
Add Tax Exemption

Specifications

Product Information

MFR #
OSFHU-CTW
Zoro #
G6267503
UPC #
78477354377
Country of Origin
Mexico

Dimensions

Coverage at Suggested Mounting Height
1600 sq. ft.
Width
2.28 in
Height
4.84 in
Size
Height 3.50" (8.99mm), Width 3.50" (8.99mm), Depth 1.25" (30.75mm)
Dimensions
3-1/2 in H x 3-1/2 in W x 1-1/4 in D
Length
4.03 in

Details

Item - Motion Sensing and Dimming
Occupancy Sensor
Sensing Technology
Passive Infrared
Installation Location - Motion Sensor
Ceiling, Wall
Operating Voltage - Motion Sensing and Dimming
120VAC, 277VAC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Manual
Time Delay - Motion Sensor
30 sec. to 20 min.
For Use With
Fluorescent and Incandescent Lighting Loads
Material
Plastic
Voltage
120/277VAC
Coverage
1600 sq. ft.
Item
Occupancy Sensor
Type
High-Bay Fixture Mount Occupancy Sensor
Color
White
Mounting
Fixture Mount
Standards
Ul and cUL Listed
Time Delay
Manual
Includes
(2) Interchangeable Lenses for Cold Storage
Watts @ 120V
800
Max. Capacity @ 277VAC
1200W (Fluorescent, Incandescent)
Installation Type
Ceiling, Wall
Timer Range
30 sec. to 20 min.
Viewing Angle
360 Degrees
Watts @ 277V
1200
Coverage Angle - Motion Sensor
360 Degrees
Sensor Type
Passive Infrared
Lighting Technology
Fluorescent, Incandescent
Max. Capacity @ 120VAC
500W (Fluorescent, Incandescent)
Listings
UL and CUL Listed (OSFHU models). Can be used to comply with IECC, ASHRAE 90.1, and Title 24, Part 6 occupancy sensing requirements.
Load Rating
800VA @ 120VAC Ballast, 1200VA @ 277VAC Ballast, 1500VA @ 347VAC Ballast, 2000VA @ 480VAC Ballast, Motor: 1/4 HP Load @ 120V
Wiring
Line-Black, Load-Red, Neutral-White
Sensor Technology
Passive Infrared (PIR)
Commissioning
Manual
Storage Temperature Range
-40° to 160°F (-40° to 71°C)
Neutral Wire Connection
Required
Mounting Type
Fixture Mount
Environment
Cold Storage
Product Type
Occupancy Sensor
Grade
Commercial
Sensor Mounting Configuration
External
Construction
High-impact, injection molded plastic housing
Frequency
50/60Hz
Relative Humidity
20% to 90% non-condensing
Application
Cold Storage, Aisle, Warehouses, Manufacturing facilities, High ceiling applications
Pattern
360°
Coverage (Sq.Ft.)
8-40 FT
Response Frequency
50/60 Hz
Power Rating
800 to 2000 VA
Standard
UL Listed;cUL Listed (OSFHU Models)
Voltage Rating
120/230/240/277/347/480 VAC
Temperature Rating
-10 to +71 °C
Environmental Conditions
Cold Storage Temperature Range (-40 to +71 DEG C);Storage Temperature Range (-25 to 71 DEG C);Relative Humidity (0 PCT to 90 Pct)

Description

High-Bay Fixture Mount Occupancy Sensor, 360 and Aisle Way (Both Lenses Included) with Passive Infrared Technology, White
