  11. Occupant Sensor Wh Occ Sens Ceiling Lv Pir 24Vdc

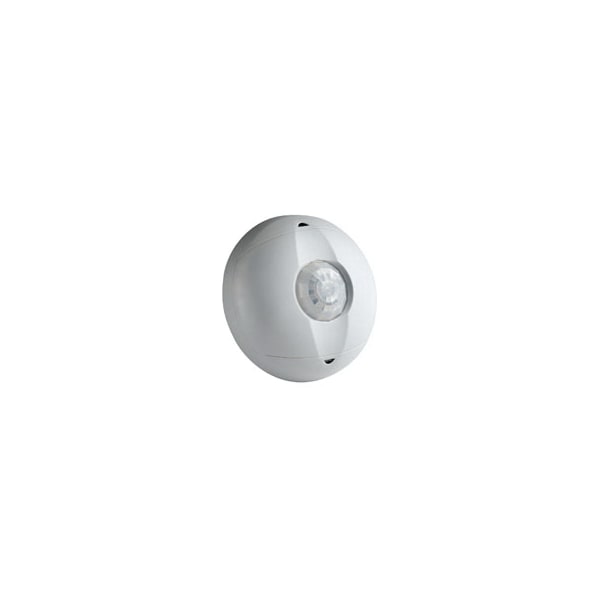

Leviton Occupant Sensor Wh Occ Sens Ceiling Lv Pir 24Vdc OSC15-I0W - main

Occupant Sensor Wh Occ Sens Ceiling Lv Pir 24Vdc

  • Mfr # OSC15-I0W

  • Zoro # G6267415

product price: $103.99
/ea
Free Shipping & Returns

Key Features

Item - Motion Sensing and Dimming
Occupancy Sensor
Sensing Technology
Passive Infrared
Installation Location - Motion Sensor
Ceiling
Coverage at Suggested Mounting Height
1500 sq. ft.
Operating Voltage - Motion Sensing and Dimming
24VDC
See all product information
Get a 10% off coupon
Free 30-day returns
Return Policy
Get 30 days to pay with Net 30
Apply Now
Real support from real people
Contact our U.S. based team

Specifications

Product Information

MFR #
OSC15-I0W
Zoro #
G6267415
UPC #
78477180587
Country of Origin
China

Dimensions

Coverage at Suggested Mounting Height
1500 sq. ft.
Height
2.62 in
Width
4.44 in
Length
4.44 in
Size
4.20 (Dia) x 1.55 D in

Details

Item - Motion Sensing and Dimming
Occupancy Sensor
Sensing Technology
Passive Infrared
Installation Location - Motion Sensor
Ceiling
Operating Voltage - Motion Sensing and Dimming
24VDC
Color - Motion Sensing and Dimming
White
Time Delay Adjustment Method - Motion Sensor
Adaptive
Time Delay - Motion Sensor
30 sec. to 30 min.
Time Delay
Adaptive
Item
Occupancy Sensor
Voltage
24VDC
Standards
cUL/US Certified, ANCE Complaint, NOM, ASHARE, FCC, California Title 24
Coverage
1500 sq. ft.
Color
White
For Use With
Mfr. No. OSP20-0D0, OSA20-R00
Timer Range
30 sec. to 30 min.
Max. Capacity @ 120VAC
500W (Incandescent)
Sensor Type
Passive Infrared
Coverage Angle - Motion Sensor
360 Degrees
Description/Special Features
Extended Range Lens
Installation Type
Ceiling
Viewing Angle
360 Degrees
Technology
Passive Infrared
Coverage (Sq.Ft.)
1500
Environmental Conditions
Operating Humidity (0 PCT to 95 PCT)
Standard
ANCE Compliant;ASHRAE (Standard 90.1 Compliant);Code Compliance (California Title 24);CUL\US (Listed 9034);FCC Compliant;NOM (057)
Application
Commercial
Temperature Rating
0 to +40 °C
Sensing Distance
1500 ft²
Voltage Rating
24 VDC

Description

Ceiling Mount Occupancy Sensor, PIR, 360 Degree, 1500 sq. ft. Coverage, Self-Adjusting, White
