Shop LEVITON

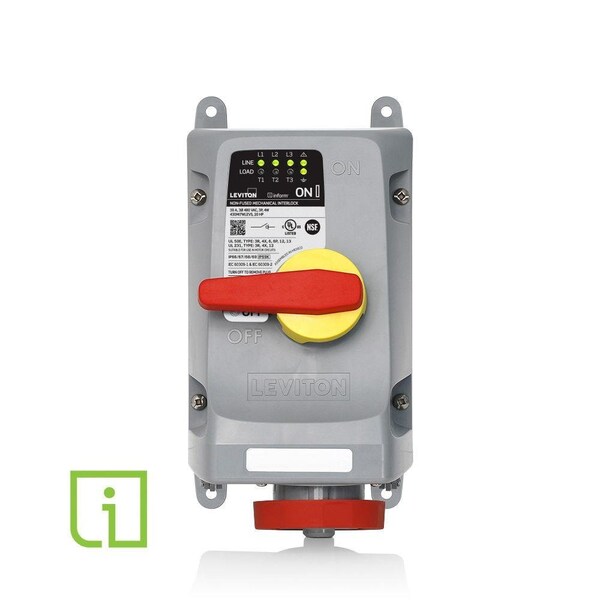

Pin and Sleeve Mechanical Interlock

  • Mfr # 430MI7WLEVS

  • Zoro # G816091589

product price:  $1,172.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
7 1/2 hp
Voltage Rating
480V AC
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
430MI7WLEVS
Zoro #
G816091589
UPC #
078477251447
Country of Origin
Mexico

Dimensions

Overall Depth
8.29 in
Overall Height
12.16 in
Overall Width
8.86 in

Details

Item
Mechanical Interlock
Phase
Three
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
Horsepower Rating
7 1/2 hp
Voltage Rating
480V AC
NEMA Enclosure Rating
12, 3R, 4X
UL 94 Flammability Rating
V-0
Resistance Properties
UV/Sunlight Resistant, Watertight
Compatible with Series
LEV
Electrical Connection Type
Pin and Sleeve
Housing Material
PBT, Polycarbonate
Fuse Protection
Non-Fused
Handle Material
PBT+PC with TPE Overmold
IP Rating
IP66, IP67, IP68, IP69, IP69K
Current Rating
30 A
Housing Color
Red
Number of Poles
3
Number of Wires
4
Standards
CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Locking Handle
Yes
Contact Material
Nickel-Plated Copper Alloy
Reverse Service
No
Circuit Breaker
No
Series
LEV
Features
LED Status Indicator

Description

Pin and Sleeve Mechanical Interlock
