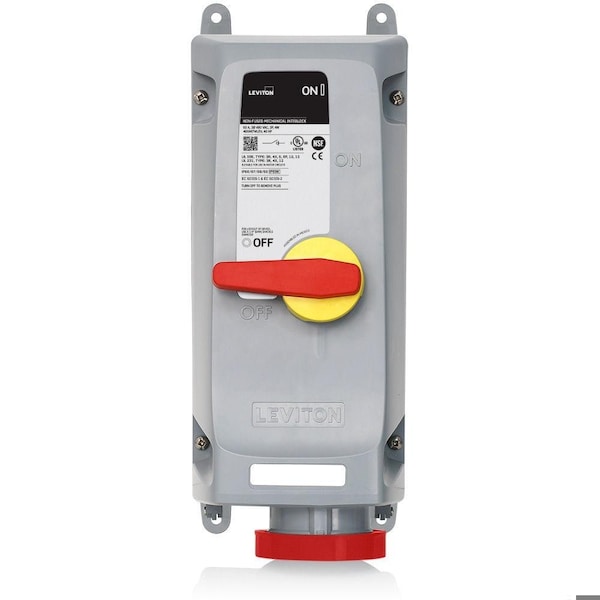

Pin and Sleeve Mechanical Interlock

  • Mfr # 460MI7WLEV
  • Zoro # G216091646
product price:
$
1,647.99
/ea
Free Shipping & Returns

Key Features

Maximum Operating Temperature
75 Degrees C
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Overall Width
9.25 in
Standards
CE, CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
460MI7WLEV
Zoro #
G216091646
UPC #
078477251584
Country of Origin
Mexico
Item
Mechanical Interlock
Maximum Operating Temperature
75 Degrees C
IP Rating
IP66, IP67, IP68, IP69K
Housing Color
Red
Standards
CE, CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Number of Wires
4
Housing Material
PBT, Polycarbonate
Minimum Operating Temperature
-40 Degrees C
Voltage Rating
480V AC
Compatible with Series
LEV
Current Rating
60 A
Handle Material
PBT+PC with TPE Overmold
Resistance Properties
UV/Sunlight Resistant, Watertight
NEMA Enclosure Rating
12, 3R, 4X
Electrical Connection Type
Pin and Sleeve
Phase
Three
Horsepower Rating
40 hp
UL 94 Flammability Rating
V-0
Number of Poles
3
Fuse Protection
Non-Fused
Contact Material
Nickel-Plated Brass
Series
LEV
Reverse Service
No
Locking Handle
Yes
Circuit Breaker
No

Dimensions

Overall Width
9.25 in
Overall Depth
9.4 in
Overall Height
17.37 in

Description

Pin and Sleeve Mechanical Interlock
