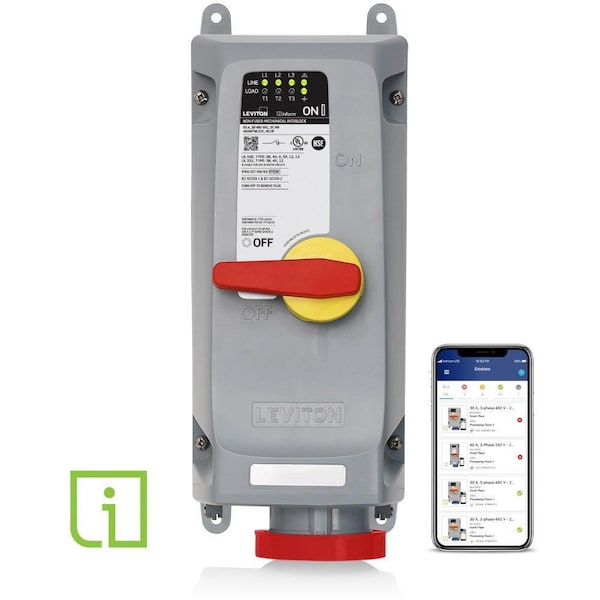

Pin and Sleeve Mechanical Interlock

Name: Pin and Sleeve Mechanical Interlock
Brand: Leviton
SKU: G416091644
Price: 1764.99 USD
Availability: InStock

1,764.99

/ea

Free Shipping & Returns

Number of Wires

Phase

Three

UL 94 Flammability Rating

V-0

Maximum Operating Temperature

60 Degrees C

Standards

CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746

Unlock 30-day payment terms

Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.

Get 10% off your order

Specifications

Item: Mechanical Interlock
Number of Wires: 4
Phase: Three
UL 94 Flammability Rating: V-0
Maximum Operating Temperature: 60 Degrees C
Standards: CSA C22.2 No. 94.1-07, IEC Rating 60309-1, 60309-2, 60309-4, NSF 14159-1, UL 1682, UL 1686, UL 50, UL 50E, UL 60947-4-1, UL 60947-1, UL 746
Electrical Connection Type: Pin and Sleeve
Fuse Protection: Non-Fused
Minimum Operating Temperature: -40 Degrees C
NEMA Enclosure Rating: 12, 3R, 4X
Housing Material: PBT, Polycarbonate
IP Rating: IP66, IP67, IP68, IP69, IP69K
Handle Material: PBT+PC with TPE Overmold
Voltage Rating: 480V AC
Number of Poles: 3
Compatible with Series: LEV
Resistance Properties: UV/Sunlight Resistant, Watertight
Housing Color: Red
Current Rating: 60 A
Horsepower Rating: 15 hp
Series: LEV
Reverse Service: No
Circuit Breaker: No
Contact Material: Nickel-Plated Copper Alloy
Features: Wi-Fi Remote Monitoring
Locking Handle: Yes
