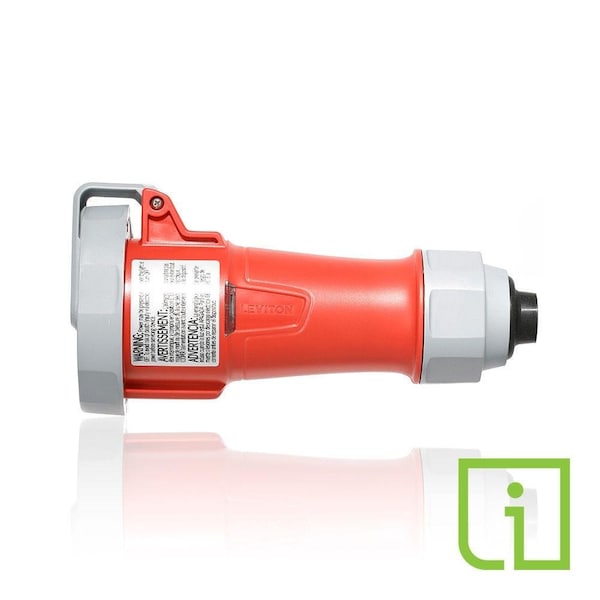

Leviton Pin & Sleeve Connector, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12 430C7WLEVPIA - main

Pin & Sleeve Connector, 30 A, 480V AC, Three Phase, 3 Pole, IEC Grounding, NEMA 3R, 4X, 6P, 12

  • Mfr # 430C7WLEVPIA

  • Zoro # G716091580

product price:  $334.99
/ea
Free Shipping & Returns

Key Features

Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
See all product information
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption

Specifications

Product Information

MFR #
430C7WLEVPIA
Zoro #
G716091580
UPC #
078477286968
Country of Origin
Mexico

Dimensions

Minimum Wire Size
10 AWG
Overall Length
8.1 in
Maximum Wire Size
8 AWG
Outside Diameter
4.06 in

Details

Item
Pin & Sleeve Connector
Current Rating
30 A
Voltage Rating
480V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP68, IP69K
NEMA Enclosure Rating
3R, 4X, 6P, 12
Wire Connection Type
Screw Terminals
Grounding Style
IEC
Housing Color
Red
Standards
CE, CSA C22.2 No. 182.1-13 (Harmonized with UL 1682), IEC Rating 60309-1, 60309-2, NOM-ANCE, NSF 14159-1, RoHS, UL 1686 C2, UL 1682
Resistance Properties
Corrosion Resistant, UV/Sunlight Resistant, Watertight
Features
Hex Style Socket Screws for Terminals
Switch Rated
No
Horsepower Rating
7 1/2 hp
For Environment
Corrosive
Power Indicating Light
Yes
Compatible with Series
LEV
UL 94 Flammability Rating
V-0
Housing Material
Nylon
Market
Industrial

Description

Pin and Sleeve Connector with Power Indication
