Plugs and Receptacles

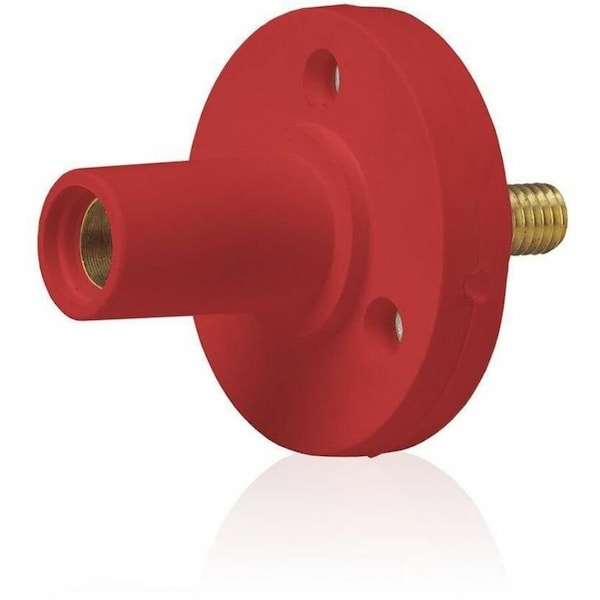

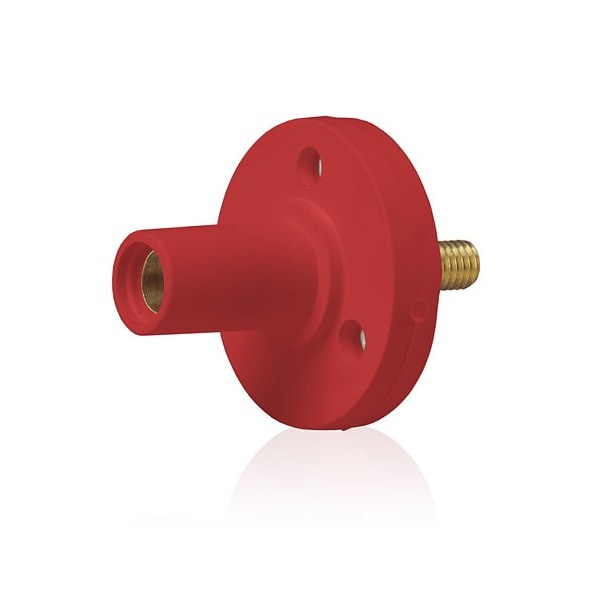

- Mfr # 15R22-UR
- Zoro # G722587497
product price:Â
$
32.19
/ea
Key Features
Maximum Wire Size
2 AWG
Housing Material
Santoprene TPV
Current Rating
150 A
Housing Color
Red
Gender
Female
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 15R22-UR
- Zoro #
- G722587497
- UPC #
- 78477711941
- Country of Origin
- Mexico
- Housing Material
- Santoprene TPV
- Current Rating
- 150 A
- Housing Color
- Red
- Gender
- Female
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Item
- Single Pole Receptacle
- Series
- 15
- NEMA Enclosure Rating
- 3R
- Connection Orientation
- Angled
- Voltage Rating
- 600V AC, 600V DC
- Maximum Operating Temperature
- 185 Degrees F
- Minimum Operating Temperature
- -40 Degrees F
- Mounting Style
- Through Hole Mounting
- End Type
- Taper Nose
- Terminal Connection Type
- Threaded Stud
- For Location
- Outdoor
- Standards
- UL/CSA 1691
- Flange Shape
- Rectangular
Dimensions
- Maximum Wire Size
- 2 AWG
- Flange Diameter
- 1.9 in
- Threaded Stud Termination Length
- 0.5 in
- Overall Length
- 2.63 in
- Minimum Wire Size
- 8 AWG
- Wire Rope Length
- 2.63 in
- Length
- 2.63 in
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 150 A, Gender Female, Housing Color Red, Housing Material Santoprene TPV, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Diameter 1.9 in, Flange Shape Rectangular, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
