Shop LEVITON
See all product information
Plugs and Receptacles
Mfr # 16R22-UO
Zoro # G522587895
product price:Â $57.39
/eaKey Features
Terminal Connection Type
Double Set Screw
Minimum Wire Size
2/0 AWG
Flange Shape
Square
Current Rating
400 A
Connection Orientation
Angled
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
16R22-UO
Zoro #
G522587895
UPC #
78477716847
Country of Origin
Mexico
Dimensions
Minimum Wire Size
2/0 AWG
Flange Width
2.28 in
Maximum Wire Size
4/0 AWG
Flange Height
2.28 in
Overall Length
4.22 in
Overall Width
2.28 in
Description

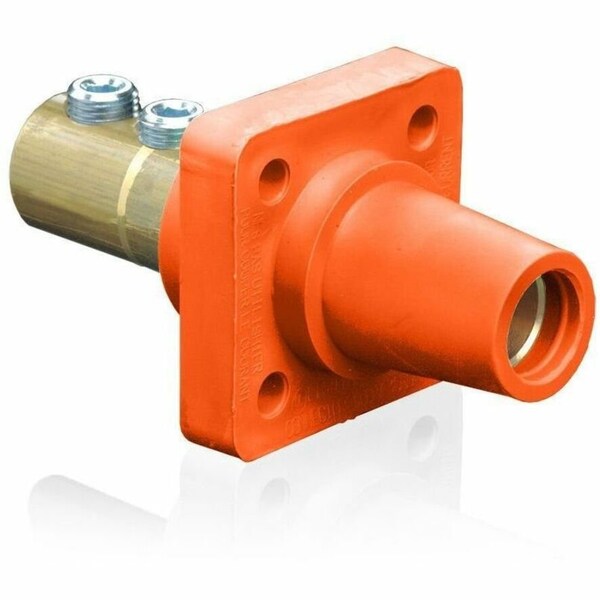

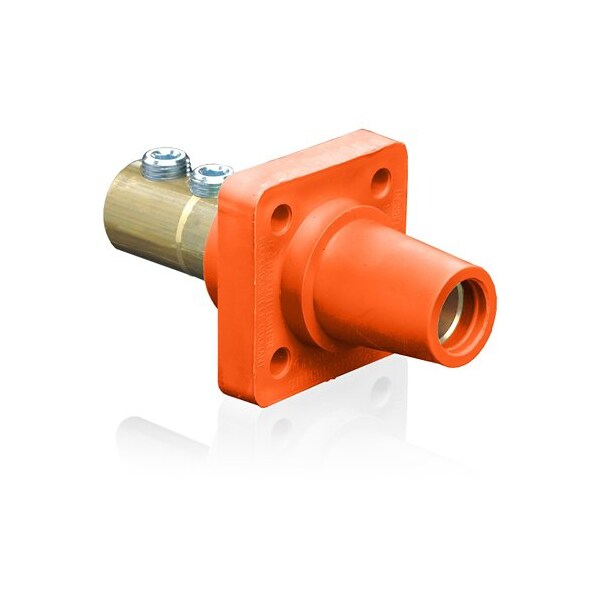

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Double Set Screw, For Location Outdoor
