Plugs and Receptacles

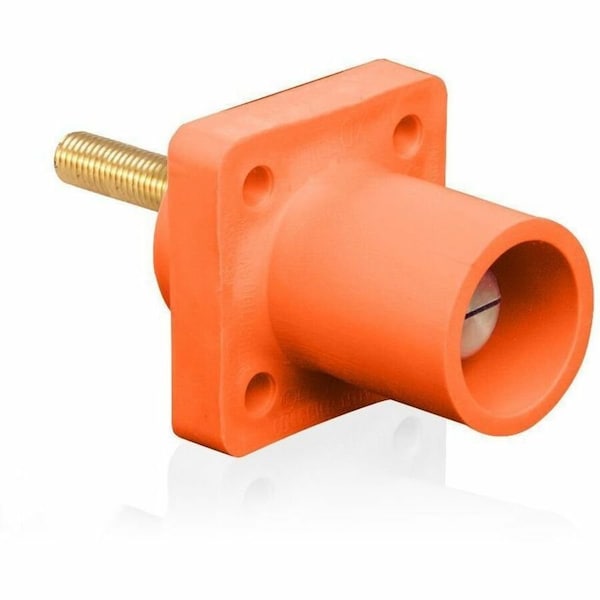

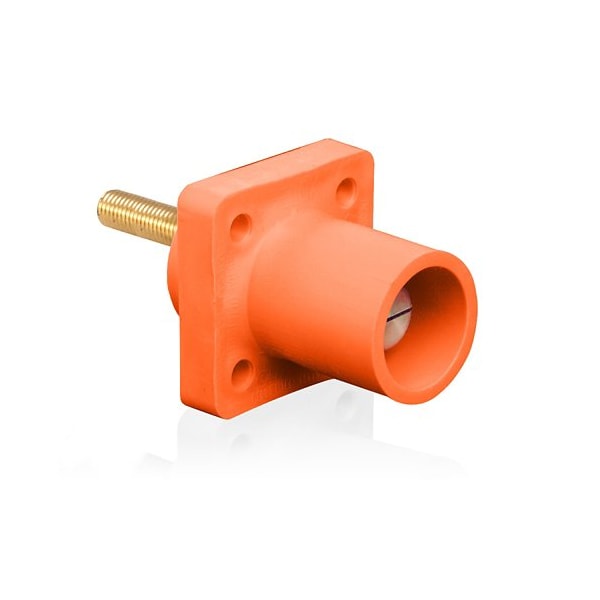

Mfr # 16R23-4UO
Zoro # G122586663
product price:Â $45.05
/eaKey Features
Flange Shape
Square
NEMA Enclosure Rating
3R
For Location
Outdoor
Current Rating
400 A
Maximum Operating Temperature
185 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R23-4UO
- Zoro #
- G122586663
- UPC #
- 78477717219
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 4/0 AWG
- Minimum Wire Size
- 2 AWG
- Threaded Stud Termination Length
- 1.5 in
Details
- Flange Shape
- Square
- NEMA Enclosure Rating
- 3R
- For Location
- Outdoor
- Current Rating
- 400 A
- Maximum Operating Temperature
- 185 Degrees F
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Item
- Single Pole Receptacle
- Housing Color
- Orange
- Voltage Rating
- 600V AC, 600V DC
- Standards
- UL/CSA 1691
- Gender
- Male
- Series
- 16
- Contact Material
- Brass
- Housing Material
- Santoprene TPV
- End Type
- Taper Nose
- Minimum Operating Temperature
- -40 Degrees F
- Terminal Connection Type
- Threaded Stud
- Mounting Style
- Through Hole Mounting
- Connection Orientation
- Angled
Description
Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F
