Shop LEVITON
See all product information
Plugs and Receptacles
Mfr # 16R24-1UB
Zoro # G522586775
product price:Â $43.49
/eaKey Features
Flange Shape
Square
Terminal Connection Type
Threaded Stud
NEMA Enclosure Rating
3R
Resistance Properties
Chemical Resistant, UV/Sunlight Resistant
Minimum Wire Size
2 AWG
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
16R24-1UB
Zoro #
G522586775
UPC #
78477717745
Country of Origin
Mexico
Dimensions
Minimum Wire Size
2 AWG
Flange Height
2.27 in
Maximum Wire Size
4/0 AWG
Overall Length
3.7 in
Overall Width
2.27 in
Threaded Stud Termination Length
1.125 in
Flange Width
2.27 in
Description

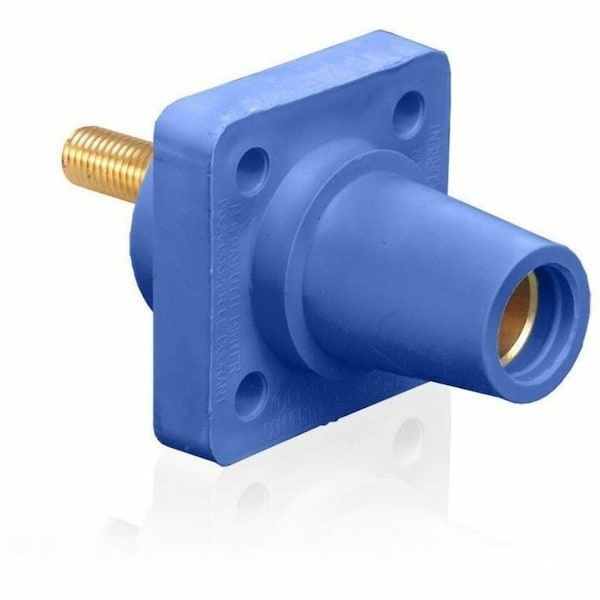

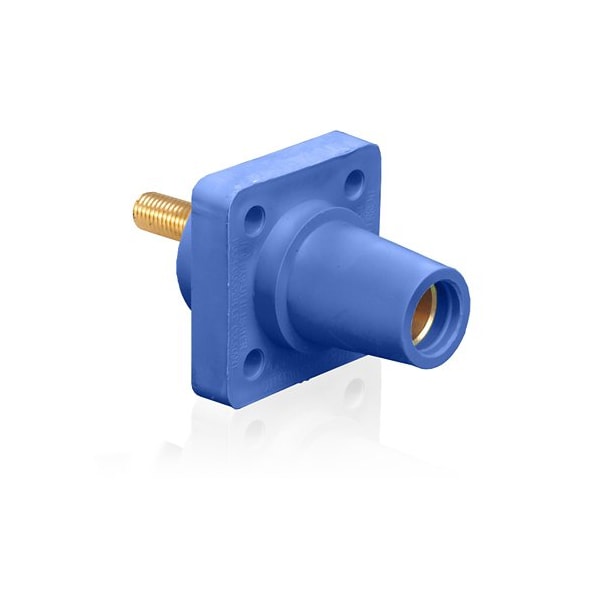

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Blue, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.27 in, Flange Shape Square, Flange Width 2.27 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
