Plugs and Receptacles

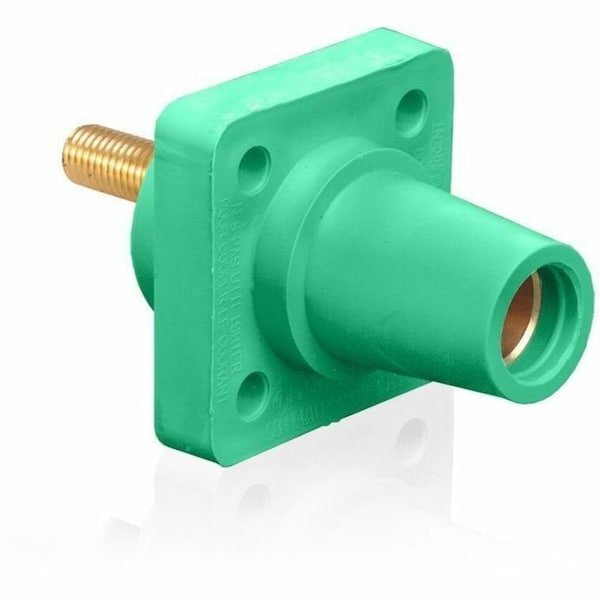

Mfr # 16R24-1UG
Zoro # G422586677
product price:Â $43.49
/eaKey Features
Current Rating
400 A
Housing Color
Green
For Location
Outdoor
Mounting Style
Through Hole Mounting
Connection Orientation
Angled
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R24-1UG
- Zoro #
- G422586677
- UPC #
- 78477717783
- Country of Origin
- Mexico
Dimensions
- Threaded Stud Termination Length
- 1.125 in
- Minimum Wire Size
- 2 AWG
- Overall Width
- 2.27 in
- Maximum Wire Size
- 4/0 AWG
- Flange Height
- 2.27 in
- Overall Length
- 3.7 in
- Flange Width
- 2.27 in
- Wire Rope Length
- 3.7 in
Description

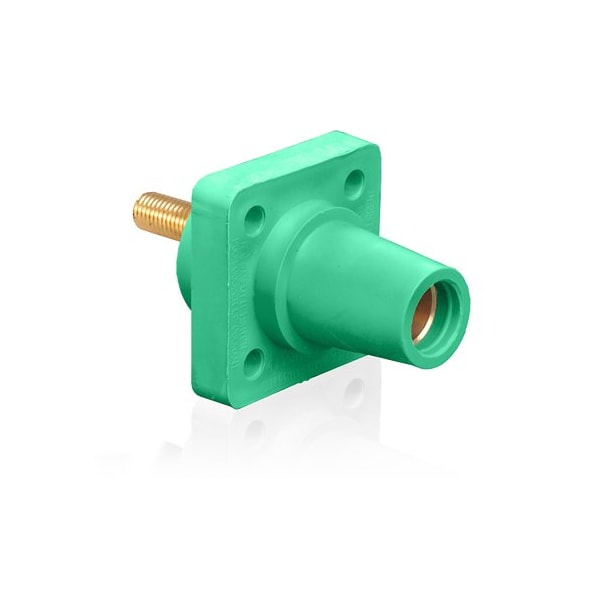

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Green, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.27 in, Flange Shape Square, Flange Width 2.27 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
