Plugs and Receptacles
Mfr # 16R24-1UH
Zoro # G322587972
product price:Â
$
45.69
/ea
Key Features
Gender
Female
Housing Color
Brown
Contact Material
Brass
Overall Width
2.27 in
Standards
CSA, UL
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R24-1UH
- Zoro #
- G322587972
- UPC #
- 78477717882
- Country of Origin
- Mexico
Dimensions
- Overall Width
- 2.27 in
- Minimum Wire Size
- 2 AWG
- Maximum Wire Size
- 4/0 AWG
- Flange Height
- 2.27 in
- Flange Width
- 2.27 in
- Threaded Stud Termination Length
- 1.125 in
- Overall Length
- 3.7 in
- Wire Rope Length
- 3.7 in
- Length
- 3.7 in
Description

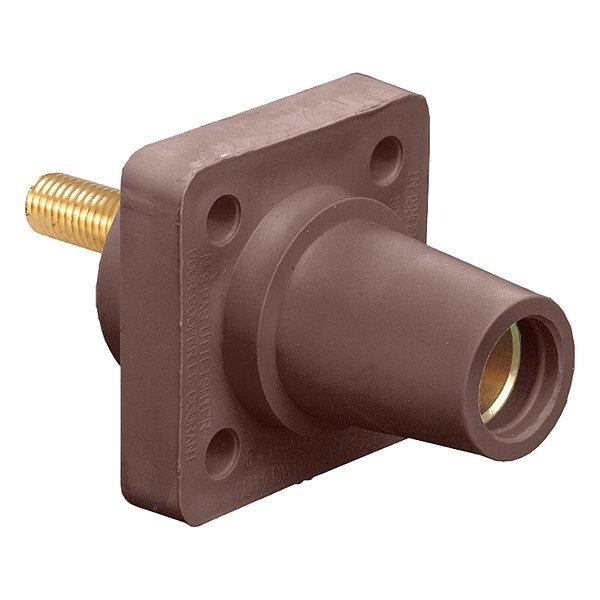

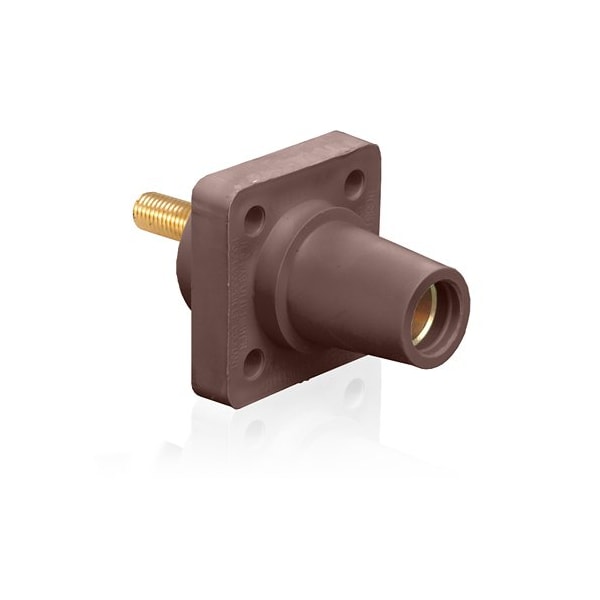

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Brown, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.27 in, Flange Shape Square, Flange Width 2.27 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
