Plugs and Receptacles
Mfr # 16R25-1UE
Zoro # G622586415
product price:Â
$
34.55
/ea
Key Features
Mounting Style
Threaded Mounting
Overall Width
2.28 in
For Location
Outdoor
Maximum Wire Size
4/0 AWG
Flange Height
2.28 in
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R25-1UE
- Zoro #
- G622586415
- UPC #
- 78477717868
- Country of Origin
- Mexico
- Mounting Style
- Threaded Mounting
- For Location
- Outdoor
- NEMA Enclosure Rating
- 3R
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Item
- Single Pole Receptacle
- Housing Material
- Nylon
- Voltage Rating
- 600V AC, 600V DC
- Gender
- Male
- Current Rating
- 400 A
- Terminal Connection Type
- Threaded Stud
- Flange Shape
- Square
- Connection Orientation
- Straight
- Standards
- CSA, UL
- Maximum Operating Temperature
- 185 Degrees F
- End Type
- Taper Nose
- Series
- 16
- Contact Material
- Brass
- Minimum Operating Temperature
- -40 Degrees F
- Housing Color
- Black
Description

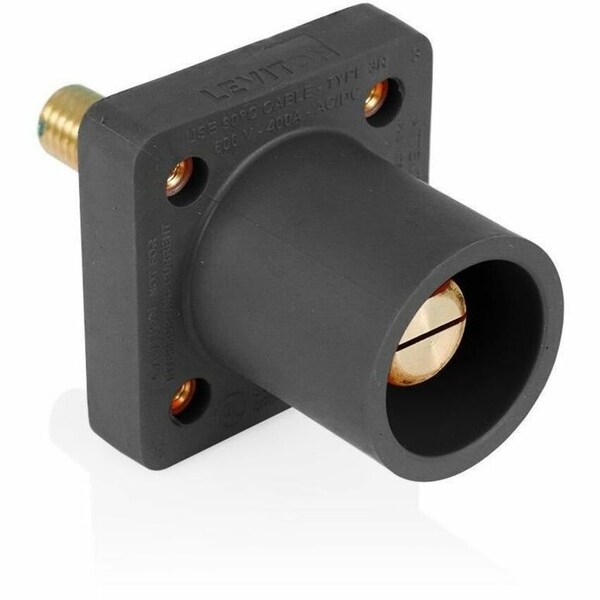

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Male, Housing Color Black, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
