Plugs and Receptacles
Mfr # 16R26-1UG
Zoro # G822587441
product price:Â
$
32.85
/ea
Key Features
End Type
Taper Nose
Housing Color
Green
For Location
Outdoor
NEMA Enclosure Rating
3R
Housing Material
Nylon
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Details
- MFR #
- 16R26-1UG
- Zoro #
- G822587441
- UPC #
- 78477718162
- Country of Origin
- Mexico
- End Type
- Taper Nose
- Housing Color
- Green
- For Location
- Outdoor
- NEMA Enclosure Rating
- 3R
- Housing Material
- Nylon
- Gender
- Female
- Terminal Connection Type
- Threaded Stud
- Standards
- CSA, UL
- Current Rating
- 400 A
- Minimum Operating Temperature
- -40 Degrees F
- Series
- 16
- Connection Orientation
- Straight
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
- Voltage Rating
- 600V AC, 600V DC
- Maximum Operating Temperature
- 185 Degrees F
- Item
- Single Pole Receptacle
- Flange Shape
- Square
- Mounting Style
- Threaded Mounting
Description

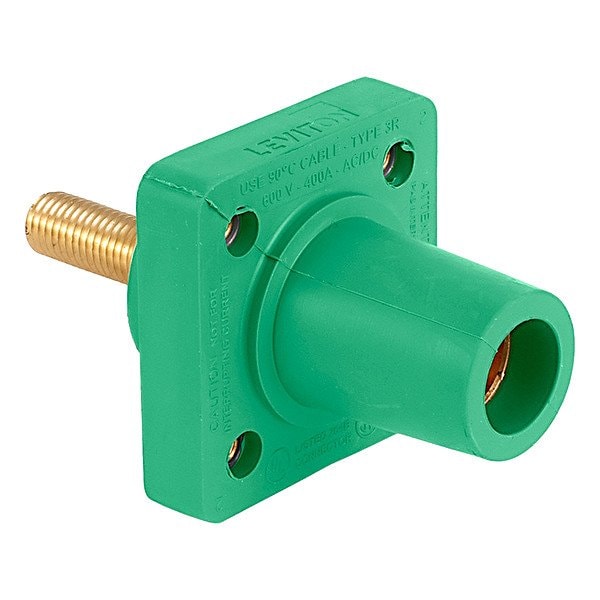

Single Pole Receptacle, Connection Orientation Straight, Current Rating 400 A, Gender Female, Housing Color Green, Housing Material Nylon, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Height 2.28 in, Flange Shape Square, Flange Width 2.28 in, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
