Plugs and Receptacles
Mfr # 16R27-UO
Zoro # G422586516
product price:Â $86.69
/eaKey Features
Housing Color
Orange
Maximum Operating Temperature
185 Degrees F
Maximum Wire Size
4/0 AWG
Minimum Wire Size
2/0 AWG
Housing Material
Santoprene TPV
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R27-UO
- Zoro #
- G422586516
- UPC #
- 78477611128
- Country of Origin
- Mexico
Dimensions
- Maximum Wire Size
- 4/0 AWG
- Minimum Wire Size
- 2/0 AWG
Details
- Housing Color
- Orange
- Maximum Operating Temperature
- 185 Degrees F
- Housing Material
- Santoprene TPV
- Item
- Single Pole Receptacle
- Connection Orientation
- Angled
- Flange Shape
- Square
- Minimum Operating Temperature
- -40 Degrees F
- Terminal Connection Type
- Double Set Screw
- Standards
- CSA, UL
- Voltage Rating
- 600V AC, 600V DC
- End Type
- Taper Nose
- NEMA Enclosure Rating
- 3R
- Mounting Style
- Through Hole Mounting
- For Location
- Outdoor
- Series
- 16
- Gender
- Male
- Current Rating
- 400 A
- Resistance Properties
- Chemical Resistant, UV/Sunlight Resistant
Description

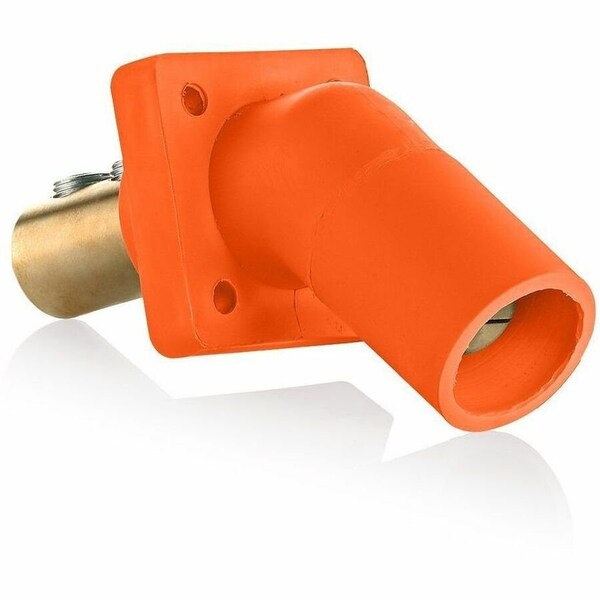

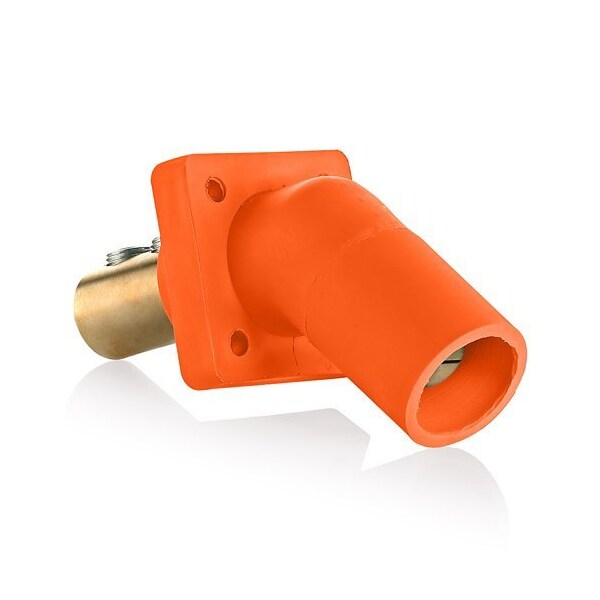

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Male, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2/0 AWG, Voltage Rating 600V AC, 600V DC, End Type Taper Nose, Flange Shape Square, NEMA Enclosure Rating 3R, Standards CSA, UL, Terminal Connection Type Double Set Screw, For Location Outdoor, Maximum Operating Temperature 185 Degrees F, Minimum Operating Temperature -40 Degrees F, Mounting Location Surface
