Plugs and Receptacles
Mfr # 16R30-1UO
Zoro # G522586409
product price:Â
$
70.19
/ea
Key Features
Minimum Wire Size
2 AWG
Series
16
Standards
UL/CSA 1691
Housing Material
Santoprene TPV
Minimum Operating Temperature
-40 Degrees F
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval.
Terms apply.
Get 10% off your order
Sign up for our email list and receive your promo code via email.
Specifications
Product Information
- MFR #
- 16R30-1UO
- Zoro #
- G522586409
- UPC #
- 78477405987
- Country of Origin
- Mexico
Dimensions
- Minimum Wire Size
- 2 AWG
- Overall Width
- 2.29 in
- Flange Height
- 2.29 in
- Overall Length
- 4.75 in
- Threaded Stud Termination Length
- 1.125 in
- Maximum Wire Size
- 4/0 AWG
- Flange Width
- 2.29 in
- Wire Rope Length
- 4.75 in
- Length
- 4.75 in
Description

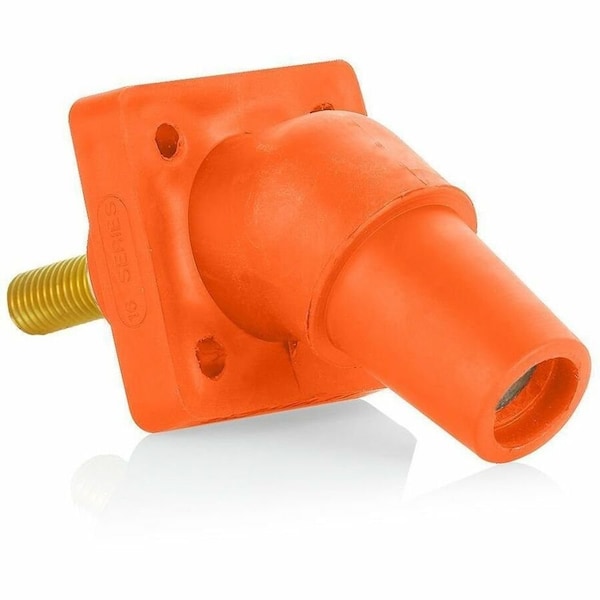

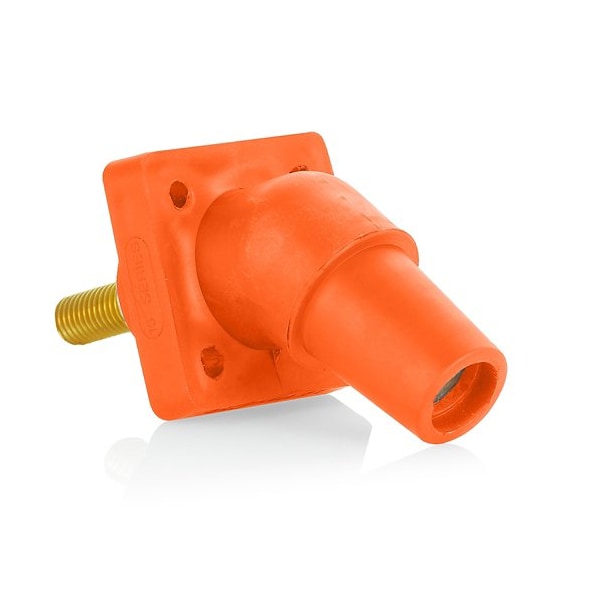

Single Pole Receptacle, Connection Orientation Angled, Current Rating 400 A, Gender Female, Housing Color Orange, Housing Material Santoprene TPV, Maximum Wire Size 4/0 AWG, Minimum Wire Size 2 AWG, Voltage Rating 600V AC, 600V DC, Contact Material Brass, End Type Taper Nose, Flange Height 2.29 in, Flange Shape Square, Flange Width 2.29 in, NEMA Enclosure Rating 3R, Standards UL/CSA 1691, Terminal Connection Type Threaded Stud, For Location Outdoor, Maximum Operating Temperature 185 Degrees F
