Shop LEVITON

Plugs and Receptacles

  • Mfr # 2633

  • Zoro # G822586642

product price:  $99.99
/ea

Key Features

Horsepower Rating
1 hp
Market
Industrial
NEMA Enclosure Rating
Not Rated
Current Rating
30 A
For Minimum Cable Diameter
0.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
2633
Zoro #
G822586642
UPC #
-
Country of Origin
Mexico

Dimensions

For Minimum Cable Diameter
0.3 in
Face Diameter
2.08 in
For Maximum Cable Diameter
0.72 in
Minimum Wire Size
16 AWG
Overall Length
2.47 in
Outside Diameter
2.08 in
Maximum Wire Size
8 AWG
Wire Rope Length
2.47 in

Details

Horsepower Rating
1 hp
Market
Industrial
NEMA Enclosure Rating
Not Rated
Current Rating
30 A
Voltage Rating
277V AC
For Environment
Industrial
Midget Locking
No
NEMA Receptacle Configuration
L7-30R
Number of Wires
3
Grade
Federal Specification
Series
Insulgrip
Contact Material
Brass
Minimum Operating Temperature
-40 Degrees F
Grounding
Grounded
Connection Orientation
Straight
IP Rating
Not Rated
Resistance Properties
Chemical Resistant, Impact Resistant, UV/Sunlight Resistant
Phase
Single
Shrouded
No
Wire Connection Type
Screw Terminals
Maximum Operating Temperature
140 Degrees F
Item

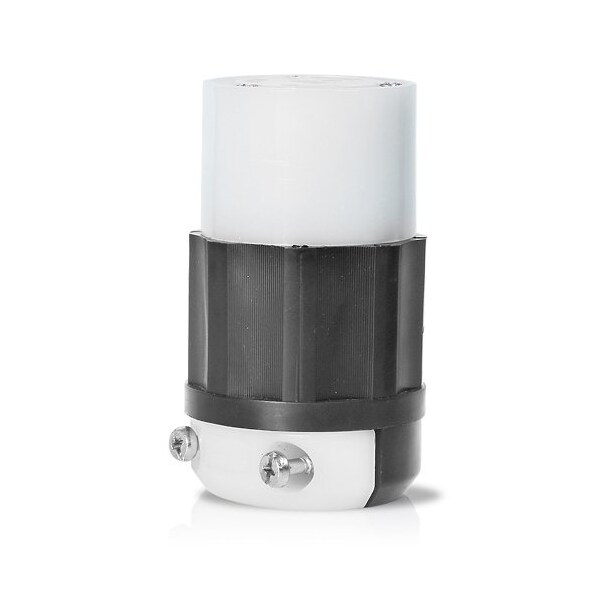

Locking Connector
Standards
ANSI C-73, CSA C22.2 No. 42 File LR-406, NEMA WD-6, NOM 057, UL 498 File E13393, UL Fed Spec WC-596 File E13393
UL 94 Flammability Rating
HB
Power and Ground Indicating Light
No
Features
One Piece Contacts Reduce Friction and Overheating
Housing Color
Black, White
Number of Poles
2
Housing Material
Nylon

Description

Locking Connector, Connection Orientation Straight, Current Rating 30 A, Housing Color Black, White, Housing Material Nylon, IP Rating Not Rated, NEMA Receptacle Configuration L7-30R, Number of Poles 2, Number of Wires 3, Phase Single, Resistance Properties Chemical Resistant, Impact Resistant, UV/Sunlight Resistant, Shrouded No, Voltage Rating 277V AC, Wire Connection Type Screw Terminals, Wiring Style Standard, Contact Material Brass, Face Diameter 2.08 in, For Maximum Cable Diameter 0.72 in
