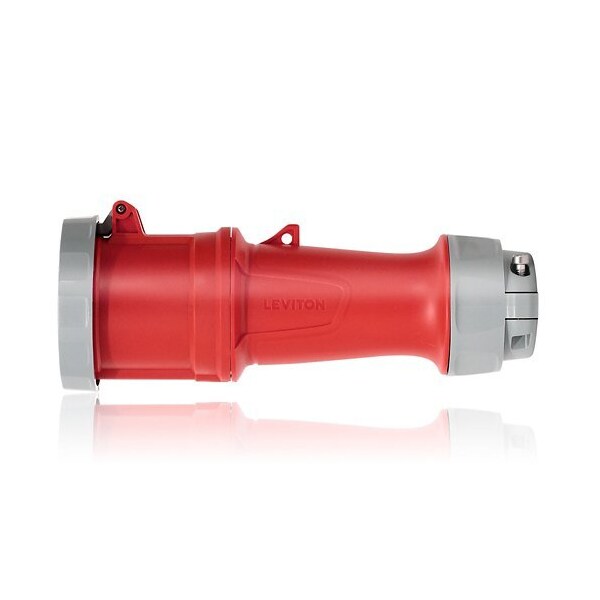

Shop LEVITON

Plugs and Receptacles

  • Mfr # 4100C7WLEV

  • Zoro # G522586522

product price:
$
867.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
4100C7WLEV
Zoro #
G522586522
UPC #
78477251829
Country of Origin
Mexico

Dimensions

Maximum Wire Size
1 AWG
Minimum Wire Size
6 AWG

Details

Current Rating
100 A
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
Housing Color
Red
For Location
Outdoor
Voltage Rating
480V AC
UL 94 Flammability Rating
V-0
Market
Industrial
Wire Connection Type
Screw Terminals
For Environment
Industrial
Series
LEV
Grounding
Grounded
Features
Front Housing Features Screwless Assembly
Standards
CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, UL 1682, UL 1686
Item

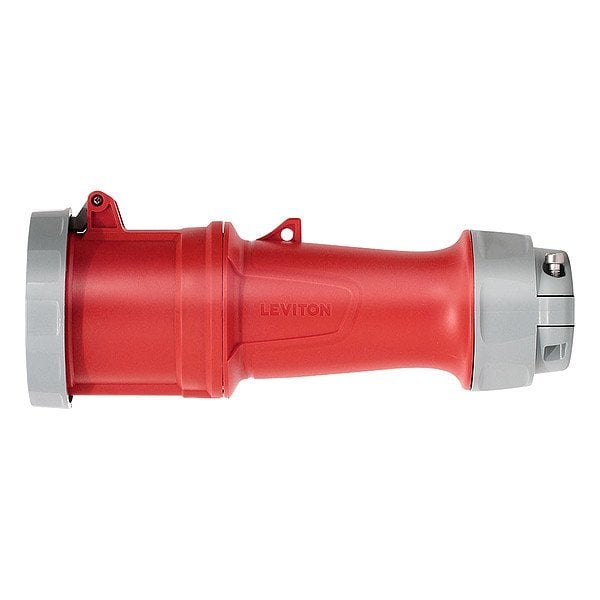

Pin and Sleeve Connector
Power Indicating Light
No
Contact Material
Nickel-Plated Brass
Reverse Service
No
Hazardous Location Specification
Not Rated
Housing Material
Nylon
Resistance Properties
Corrosion Resistant
Horsepower Rating
20 hp

Description

Pin and Sleeve Connector, Current Rating 100 A, Grounding Style IEC, Horsepower Rating 20 hp, Housing Color Red, IP Rating IP66, IP67, IP69K, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Switch Rated No, Voltage Rating 480V AC, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Nylon, Market Industrial, Maximum Wire Size 1 AWG, Minimum Wire Size 6 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P, Power Indicating Light No
