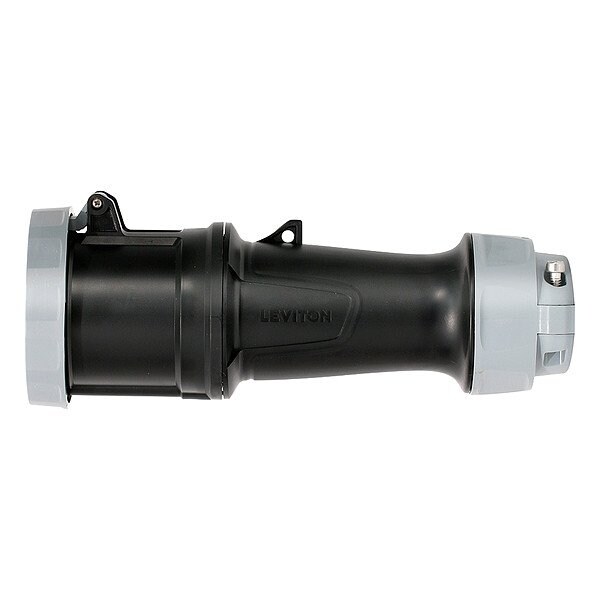

Shop LEVITON

Plugs and Receptacles

  • Mfr # 460C5WLEV

  • Zoro # G722586254

product price:  $588.99
/ea
Free Shipping & Returns

Key Features

Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
460C5WLEV
Zoro #
G722586254
UPC #
78477901540
Country of Origin
Mexico

Dimensions

Maximum Wire Size
2 AWG
Outside Diameter
4.1 in
Overall Length
11.01 in
Minimum Wire Size
8 AWG
Face Diameter
4.1 in

Details

Current Rating
60 A
Voltage Rating
600V AC
Phase
Three
Number of Poles
3
Number of Wires
4
IP Rating
IP66, IP67, IP69K
NEMA Enclosure Rating
12, 3R, 4X, 6P
Housing Color
Black
Standards
CSA, IEC 60309-1, IEC 60309-2, NOM-ANCE Requirements, UL 1682, UL 1686
Market
Industrial
Power Indicating Light
No
Hazardous Location Specification
Not Rated
UL 94 Flammability Rating
V-0
Resistance Properties
Corrosion Resistant
For Environment
Industrial
Series
LEV
Horsepower Rating
20 hp
For Location
Outdoor
Contact Material
Nickel-Plated Brass
Features
Front Housing Features Screwless Assembly, Private Labeling Capabilities
Item
Pin and Sleeve Connector
Grounding
Grounded
Reverse Service
No
Wire Connection Type
Screw Terminals
Housing Material
Nylon

Description

Pin and Sleeve Connector, Current Rating 60 A, Grounding Style IEC, Horsepower Rating 20 hp, Housing Color Black, IP Rating IP66, IP67, IP69K, Number of Poles 3, Number of Wires 4, Phase Three, Resistance Properties Corrosion Resistant, Switch Rated No, Voltage Rating 600V AC, Face Diameter 4.1 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Nylon, Market Industrial, Maximum Wire Size 2 AWG, Minimum Wire Size 8 AWG, NEMA Enclosure Rating 12, 3R, 4X, 6P
