Shop LEVITON
See all product information
Plugs and Receptacles

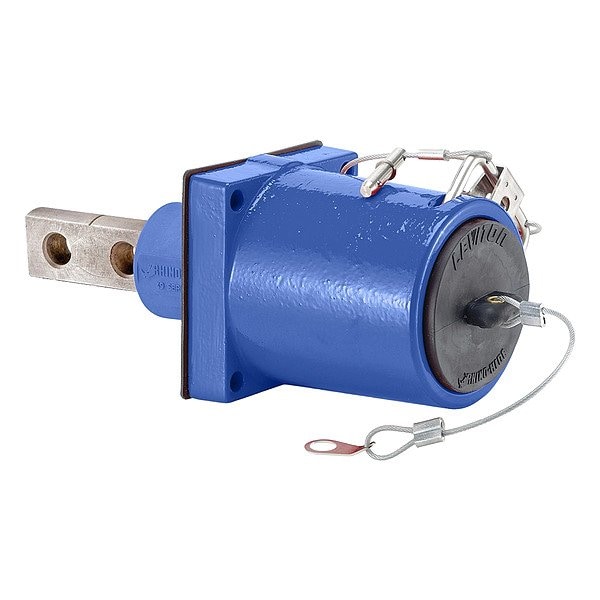

Mfr # 49FR2-XB
Zoro # G922587082
product price:Â $1,234.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
1000V AC, 1000V DC
Minimum Operating Temperature
-76 Degrees F
Connection Orientation
Straight
Flange Height
4.49 in
Housing Material
Thermoplastic Elastomer
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
49FR2-XB
Zoro #
G922587082
UPC #
78477386767
Country of Origin
Mexico
Dimensions
Flange Height
4.49 in
Overall Length
10.52 in
Maximum Wire Size
777 kcmil
Overall Width
4.49 in
Minimum Wire Size
313 kcmil
Flange Width
4.49 in
Details
Voltage Rating
1000V AC, 1000V DC
Minimum Operating Temperature
-76 Degrees F
Connection Orientation
Straight
Housing Material
Thermoplastic Elastomer
Resistance Properties
Corrosion Resistant
Maximum Operating Temperature
275 Degrees F
Gender
Female
Terminal Connection Type
Two-Hole Bus Bar
Flange Shape
Square
Mounting Style
Through Hole Mounting
NEMA Enclosure Rating
3R
Item
Single Pole Receptacle
End Type
45 Degrees Clevis Pin
Standards
UL Recognized
Housing Color
Blue
Series
49
Current Rating
1,135 A
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color Blue, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
