Plugs and Receptacles

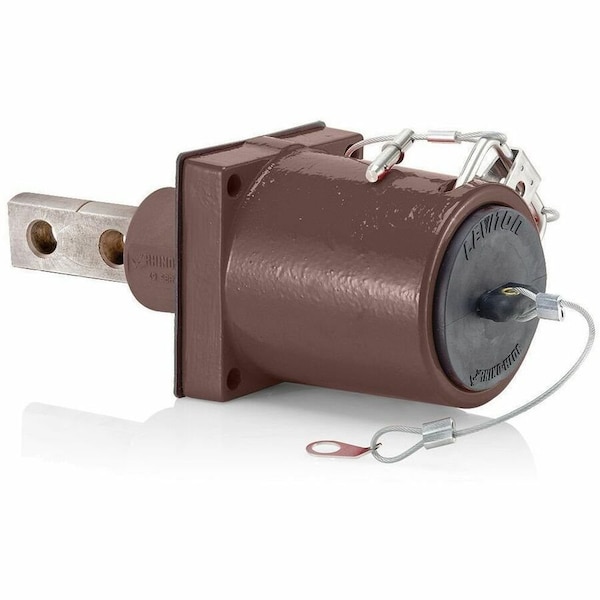

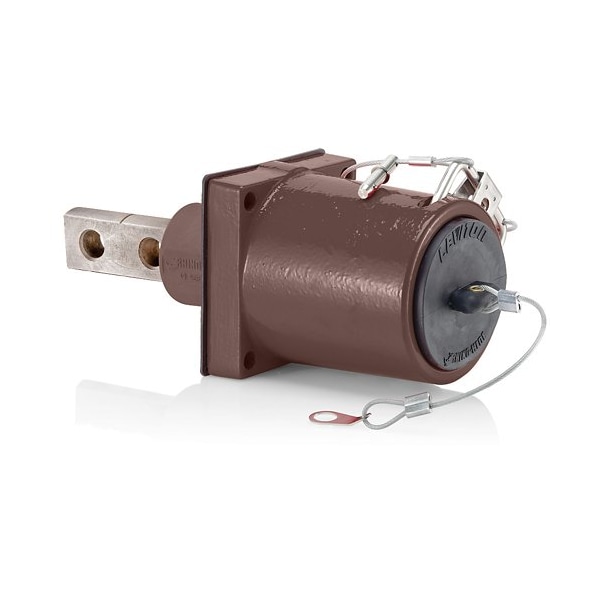

Mfr # 49FR2-XH
Zoro # G122587981
product price:Â $1,234.99
/ea
Free Shipping & Returns
Key Features
Voltage Rating
1000V AC, 1000V DC
Housing Color
Brown
Flange Width
4.49 in
Minimum Operating Temperature
-76 Degrees F
Series
49
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
49FR2-XH
Zoro #
G122587981
UPC #
78477386811
Country of Origin
Mexico
Dimensions
Flange Width
4.49 in
Overall Length
10.52 in
Overall Width
4.49 in
Flange Height
4.49 in
Minimum Wire Size
313 kcmil
Maximum Wire Size
777 kcmil
Details
Voltage Rating
1000V AC, 1000V DC
Housing Color
Brown
Minimum Operating Temperature
-76 Degrees F
Series
49
Standards
UL Recognized
Maximum Operating Temperature
275 Degrees F
Current Rating
1,135 A
Resistance Properties
Corrosion Resistant
Connection Orientation
Straight
NEMA Enclosure Rating
3R
Mounting Style
Through Hole Mounting
Flange Shape
Square
Terminal Connection Type
Two-Hole Bus Bar
Gender
Female
End Type
45 Degrees Clevis Pin
Item
Single Pole Receptacle
Housing Material
Thermoplastic Elastomer
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Female, Housing Color Brown, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
