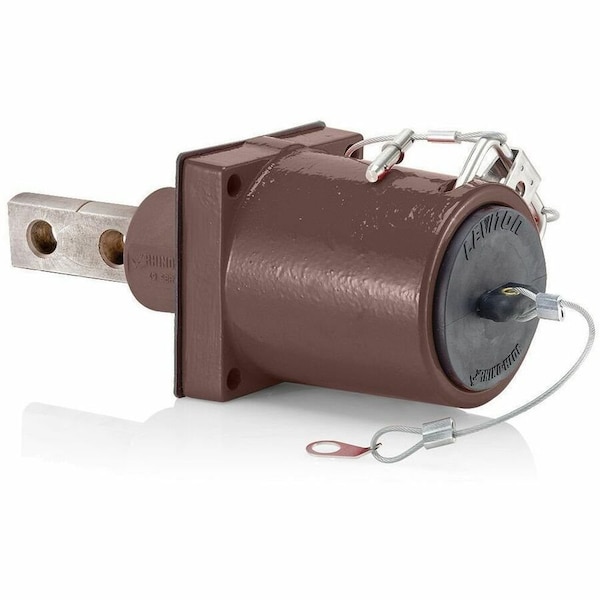

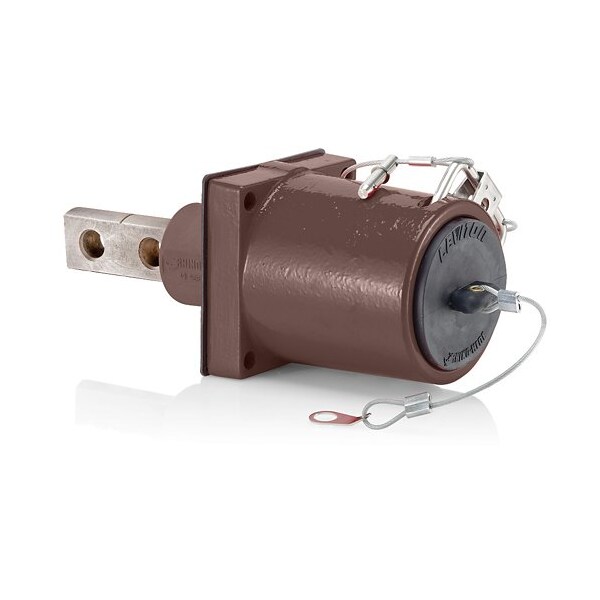

Plugs and Receptacles
Mfr # 49MR2-XH
Zoro # G322586401
product price:Â $1,369.99
/ea
Free Shipping & Returns
Key Features
Minimum Operating Temperature
-76 Degrees F
NEMA Enclosure Rating
3R
Resistance Properties
Corrosion Resistant
Minimum Wire Size
313 kcmil
Gender
Male
Get a 10% off coupon
Free 30-day returns Return Policy
Get 30 days to pay with Net 30 Apply Now
Unlock tax-exempt savings Add Tax Exemption
Specifications
Product Information
MFR #
49MR2-XH
Zoro #
G322586401
UPC #
78477386590
Country of Origin
Mexico
Dimensions
Minimum Wire Size
313 kcmil
Overall Length
10.53 in
Flange Height
4.49 in
Maximum Wire Size
777 kcmil
Flange Width
4.49 in
Overall Width
4.49 in
Details
Minimum Operating Temperature
-76 Degrees F
NEMA Enclosure Rating
3R
Resistance Properties
Corrosion Resistant
Item
Single Pole Receptacle
Gender
Male
Terminal Connection Type
Two-Hole Bus Bar
Mounting Style
Through Hole Mounting
Housing Material
Thermoplastic Elastomer
Maximum Operating Temperature
275 Degrees F
End Type
45 Degrees Clevis Pin
Housing Color
Brown
Connection Orientation
Straight
Current Rating
1,135 A
Voltage Rating
1000V AC, 1000V DC
Series
49
Standards
UL Recognized
Flange Shape
Square
Description
Single Pole Receptacle, Connection Orientation Straight, Current Rating 1,135 A, Gender Male, Housing Color Brown, Housing Material Thermoplastic Elastomer, Maximum Wire Size 777 kcmil, Minimum Wire Size 313 kcmil, Voltage Rating 1000V AC, 1000V DC, End Type 45 Degrees Clevis Pin, Flange Height 4.49 in, Flange Shape Square, Flange Width 4.49 in, NEMA Enclosure Rating 3R, Standards UL Recognized, Terminal Connection Type Two-Hole Bus Bar, Maximum Operating Temperature 275 Degrees F
