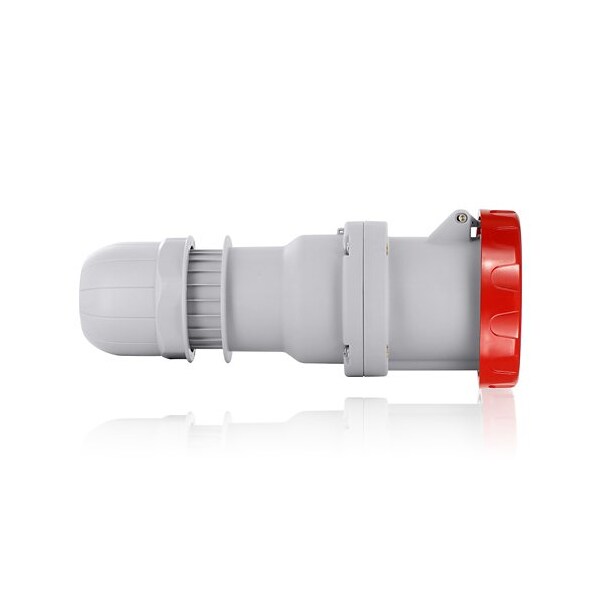

Shop LEVITON

Plugs and Receptacles

  • Mfr # W463-C6

  • Zoro # G722587466

product price:
$
220.99
/ea
Free Shipping & Returns

Key Features

Number of Poles
4
Number of Wires
5
IP Rating
IP66, IP67
Housing Color
Red
Standards
IEC/EN 60309-1, IEC/EN 60309-2
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W463-C6
Zoro #
G722587466
UPC #
78477677834
Country of Origin
Italy

Dimensions

For Minimum Cable Diameter
0.669 in
Maximum Wire Size
6 AWG
Minimum Wire Size
10 AWG
For Maximum Cable Diameter
1.22 in

Details

Number of Poles
4
Number of Wires
5
IP Rating
IP66, IP67
Housing Color
Red
Standards
IEC/EN 60309-1, IEC/EN 60309-2
Resistance Properties
Corrosion Resistant
Features
Easy Access to Wire Chambers, Locking Strain Relief Grip, Molded-On Gaskets for a Trusted Watertight Seal
Voltage Rating
346 to 415V AC
Power Indicating Light
No
Market
Industrial
Housing Material
Polymer
Current Rating
63 A
Series
IEC/EN 60309
For Environment
Industrial
Reverse Service
No
Grounding
Grounded
Hazardous Location Specification
Not Rated
Phase
Three
NEMA Enclosure Rating
12, 3R, 4X, 6P
Contact Material
Nickel-Plated Brass
Wire Connection Type
Screw Terminals
Horsepower Rating
15 hp
Item
Pin and Sleeve Connector

Description

Pin and Sleeve Connector, Current Rating 63 A, Grounding Style IEC, Horsepower Rating 15 hp, Housing Color Red, IP Rating IP66, IP67, Number of Poles 4, Number of Wires 5, Phase Three, Resistance Properties Corrosion Resistant, Switch Rated No, Voltage Rating 346 to 415V AC, For Maximum Cable Diameter 1.22 in, For Minimum Cable Diameter 0.669 in, Grounding Grounded, Hazardous Location Specification Not Rated, Housing Material Polymer, Market Industrial, Maximum Wire Size 6 AWG
