Shop LEVITON

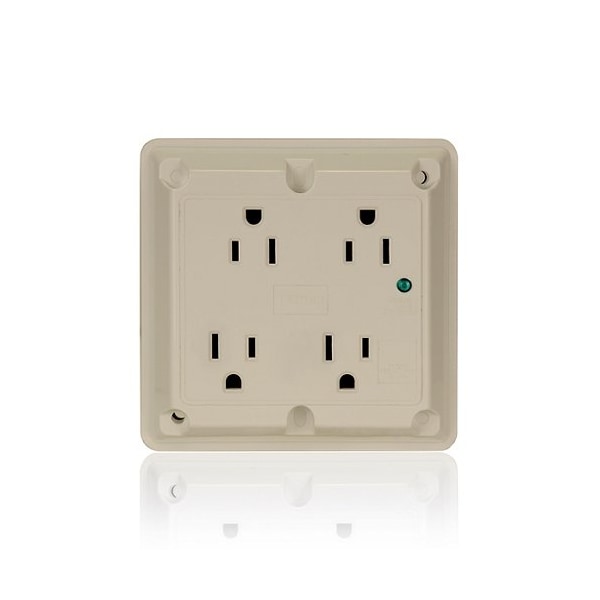

PlugsandRcptcls, 15A, 125VAC, Ivory, Nylon

  • Mfr # 5480-I

  • Zoro # G322586692

product price:
$
96.39
/ea

Key Features

Connection Orientation
Straight
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
For Environment
Food and Beverage, Oily/Greasy
GFCI
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5480-I
Zoro #
G322586692
UPC #
78477843505
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in

Details

Connection Orientation
Straight
Wire Connection Type
Screw Terminals
UL 94 Flammability Rating
V-2
For Environment
Food and Beverage, Oily/Greasy
GFCI
No
Voltage Rating
125V AC
Grounding
Grounded
Flange Type
Non-Flanged
Shrouded
No
AFCI
No
Wiring Method
Side
Receptacle Type
Quad
Item
Plugs and Receptacles
Housing Material
Nylon
Surge Protection
Yes
Maximum Surge Current
27 kA
Number of Outlets
4
Number of Gangs
2
Horsepower Rating
1 hp
Grade
Federal Specification
IP Rating
Not Rated
Maximum Operating Temperature
60 Degrees C
NEMA Receptacle Configuration
5-15R
Housing Color
Ivory
Market
Industrial
Number of Poles
2
NEMA Enclosure Rating
Not Rated
Features
Surge Protected Quadruplex Receptacle
Contact Material
Brass
Number of Wall Plates Included
0
Polarized
Yes
Standards
CSA, FULS Marking, UL
Resistance Properties
Chemical Resistant, Impact Resistant
Minimum Operating Temperature
-40 Degrees C
Current Rating
15 A
Mount Type
Flush
Phase
Single
Cover Type
No Cover
Number of Wires
3

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Ivory, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 2, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Quad, Resistance Properties Chemical Resistant, Impact Resistant
