Shop LEVITON

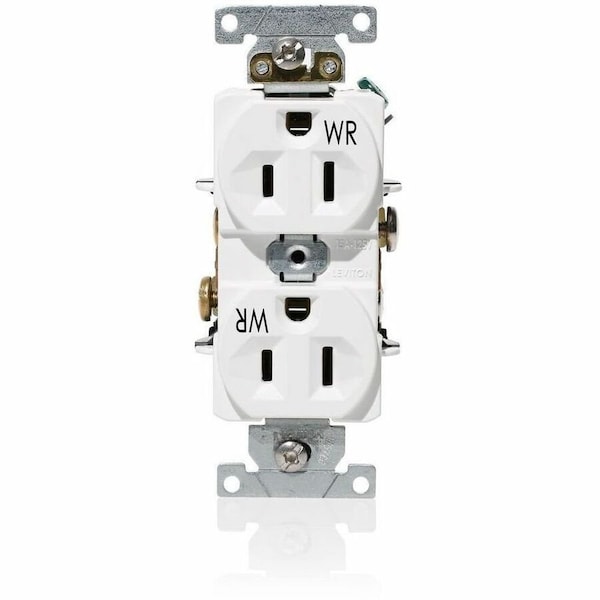

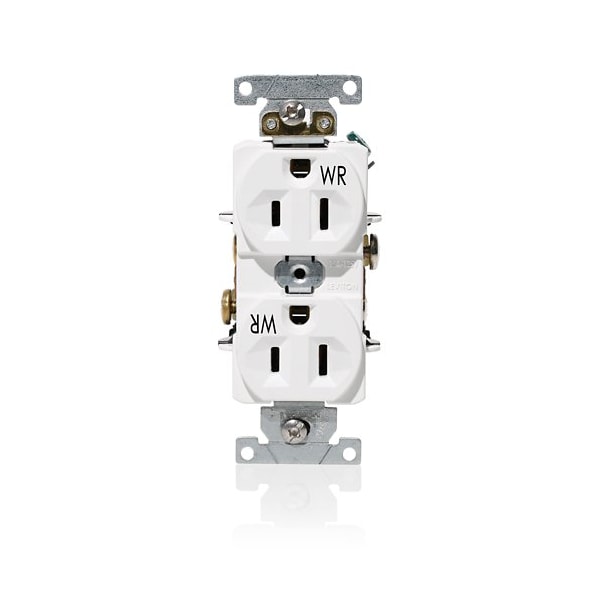

PlugsandRcptcls, 15A, 125VAC, Wht, Nylon, PK1

  • Mfr # WBR15-W

  • Zoro # G122586946

product price:
$
153.99
/pk 10, $15.40/ea
Free Shipping & Returns

Key Features

Contact Material
Nickel-Plated Brass
Mount Hole Center-to-Center Height
3.3 in
NEMA Receptacle Configuration
5-15R
Number of Wires
3
Shrouded
No
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
WBR15-W
Zoro #
G122586946
UPC #
78477395936
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.8 in
Overall Depth
1.1 in
Face Plate Width
1.4 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

Contact Material
Nickel-Plated Brass
NEMA Receptacle Configuration
5-15R
Number of Wires
3
Shrouded
No
GFCI
No
Number of Poles
2
Market
Industrial
Phase
Single
Surge Protection
No
Wiring Method
Back/Side
Mount Type
Flush
Polarized
Yes
Minimum Operating Temperature
-40 Degrees C
Number of Gangs
1
Item
Plugs and Receptacles
Grounding
Grounded
Wire Connection Type
Screw Terminals
Cover Type
No Cover
For Environment
Food and Beverage, Oily/Greasy
Features
Indented Face
Resistance Properties
Tamper Resistant, Weather Resistant
Standards
CSA, FULS Marking, UL
Housing Color
White
Number of Wall Plates Included
0
Connection Orientation
Straight
AFCI
No
NEMA Enclosure Rating
Not Rated
Number of Outlets
2
Current Rating
15 A
Horsepower Rating
1/2 hp
UL 94 Flammability Rating
V-2
Housing Material
Nylon
IP Rating
Not Rated
Voltage Rating
125V AC
Flange Type
Non-Flanged
Receptacle Type
Duplex
Maximum Operating Temperature
60 Degrees C
Grade
General Use

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Weather Resistant
