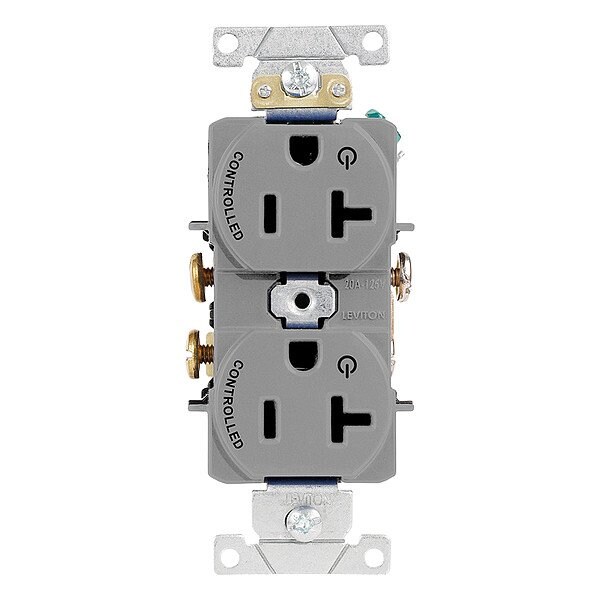

PlugsandRcptcls, 20A, 125VAC, Gry, Nylon, PK1

  • Mfr # 5362-S2G
  • Zoro # G722587411
product price:
$
279.99
/pk of 10, $28.00/ea
Free Shipping & Returns
Zoro's best price: not eligible for any other offers or promotions

Key Features

Wiring Method
Back/Side
Grade
General Use
Maximum Operating Temperature
75 Degrees C
Housing Color
Gray
Minimum Wire Size
14 AWG
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5362-S2G
Zoro #
G722587411
UPC #
78477711514
Country of Origin
Mexico

Dimensions

Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG
Fits Chest Size
Smooth Face, Two Outlets Marked "Controlled"

Details

Wiring Method
Back/Side
Grade
General Use
Maximum Operating Temperature
75 Degrees C
Housing Color
Gray
AFCI
No
Housing Material
Nylon
IP Rating
Not Rated
Flange Type
Non-Flanged
Market
Industrial
Current Rating
20 A
Item
Plugs and Receptacles
Receptacle Type
Duplex
NEMA Receptacle Configuration
5-20R
Number of Poles
2
Contact Material
Brass
Surge Protection
No
Voltage Rating
125V AC
Features
Smooth Face, Two Outlets Marked "Controlled"
UL 94 Flammability Rating
V-2
GFCI
No
Number of Gangs
1
Phase
Single
Mount Type
Flush
Horsepower Rating
1 hp
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Standards
CSA, FULS Marking, UL
Number of Wall Plates Included
0
Connection Orientation
Straight
For Environment
Food and Beverage, Oily/Greasy
Polarized
Yes
Number of Wires
3
Wire Connection Type
Screw Terminals
Number of Outlets
2
Grounding
Grounded
Minimum Operating Temperature
-40 Degrees C
Shrouded
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
