Shop LEVITON

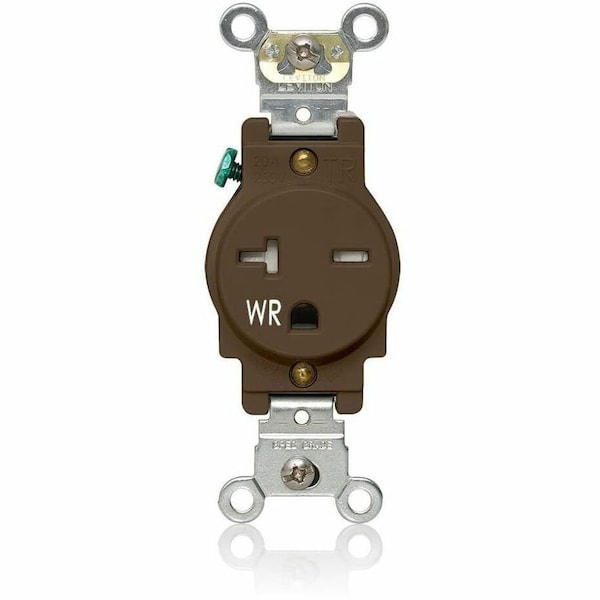

PlugsandRcptcls, 20A, 250VAC, Brn, Nylon, PK1

  • Mfr # W5461-T00

  • Zoro # G922587846

product price:
$
311.99
/pk 10, $31.20/ea
Free Shipping & Returns

Key Features

Overall Depth
1.1 in
Contact Material
Brass
Voltage Rating
250V AC
Phase
Single
Horsepower Rating
2 hp
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
W5461-T00
Zoro #
G922587846
UPC #
78477320372
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Minimum Wire Size
14 AWG
Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Mount Hole Center-to-Center Height
3.3 in

Details

Contact Material
Brass
Voltage Rating
250V AC
Phase
Single
Horsepower Rating
2 hp
Resistance Properties
Tamper Resistant, Weather Resistant
Mount Type
Flush
IP Rating
Not Rated
NEMA Receptacle Configuration
6-20R
Market
Industrial
Wire Connection Type
Screw Terminals
AFCI
No
Number of Gangs
1
Shrouded
No
Standards
CSA, FULS Marking, UL
Housing Material
Nylon
Features
Smooth Face
Minimum Operating Temperature
-40 Degrees C
Maximum Operating Temperature
75 Degrees C
Current Rating
20 A
Housing Color
Brown
Cover Type
No Cover
NEMA Enclosure Rating
Not Rated
Flange Type
Non-Flanged
UL 94 Flammability Rating
V-2
Polarized
Yes
Surge Protection
No
Grounding
Grounded
Number of Outlets
1
Number of Wires
3
Item
Plugs and Receptacles
Number of Wall Plates Included
0
For Environment
Food and Beverage, Oily/Greasy
Grade
General Use
Receptacle Type
Single
GFCI
No
Number of Poles
2
Connection Orientation
Straight
Wiring Method
Back/Side

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Brown, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 6-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant, Weather Resistant
