Shop LEVITON

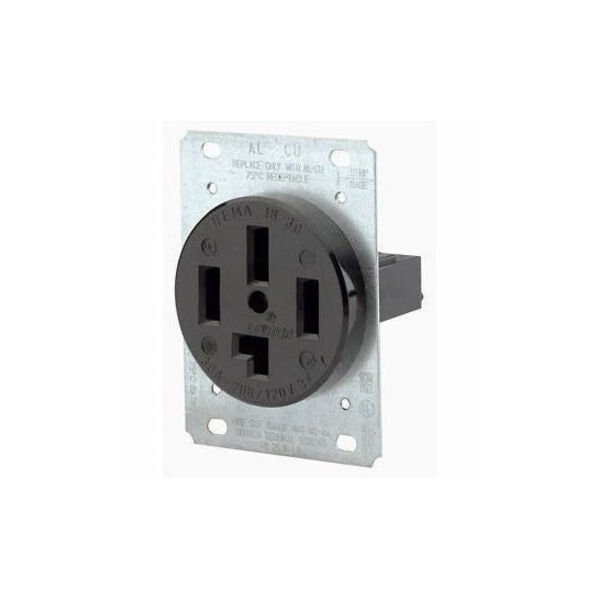

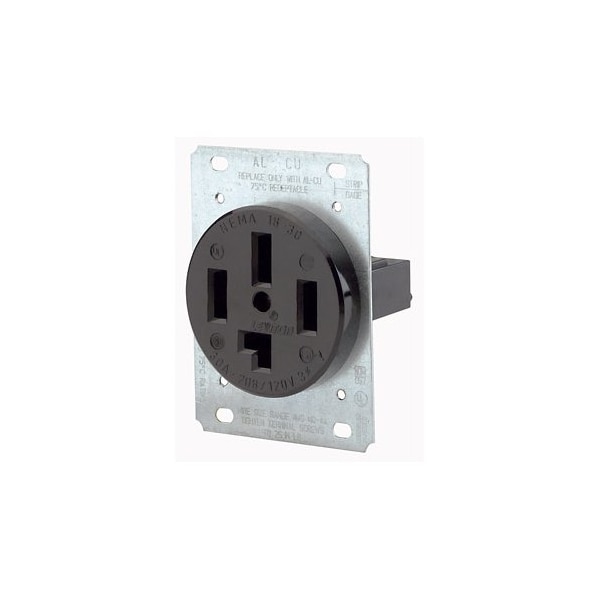

PlugsandRcptcls, 30A, 120/208VAC, Blk, Nylon

  • Mfr # 8330

  • Zoro # G122587844

product price:
$
59.15
/ea

Key Features

Wire Connection Type
Screw Terminals
NEMA Receptacle Configuration
18-30R
Mount Type
Flush
Surge Protection
No
Flange Type
Flanged
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
8330
Zoro #
G122587844
UPC #
-
Country of Origin
Mexico
Wire Connection Type
Screw Terminals
NEMA Receptacle Configuration
18-30R
Mount Type
Flush
Surge Protection
No
Flange Type
Flanged
Shrouded
No
Number of Outlets
1
IP Rating
Not Rated
Connection Orientation
Straight
Grade
Federal Specification
Features
Straight Blade
Housing Material
Nylon
Number of Gangs
1
Market
Industrial
Current Rating
30 A
NEMA Enclosure Rating
Not Rated
Number of Poles
4
Phase
Single
Voltage Rating
120/208V AC
Number of Wall Plates Included
0
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass
Flange Shape
Rectangular
Grounding
Non-Grounded
Maximum Operating Temperature
60 Degrees C
Receptacle Type
Single
Polarized
Yes
Wiring Method
Side
Number of Wires
4
Standards
ANSI C-73, CSA C22.2 No. 42 File 152105, NEMA WD-6, NOM 057, UL 498 File E13399
Housing Color
Black
GFCI
No
Resistance Properties
Tamper Resistant
AFCI
No
Horsepower Rating
3 hp
Cover Type
No Cover
Item
Plugs and Receptacles

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 30 A, GFCI No, Grounding Non-Grounded, Hazardous Location Specification Not Applicable, Housing Color Black, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 18-30R, Number of Gangs 1, Number of Poles 4, Number of Wires 4, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Tamper Resistant
