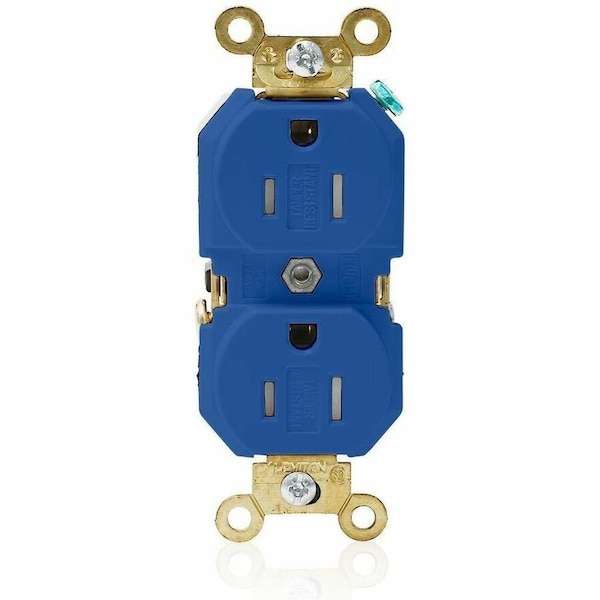

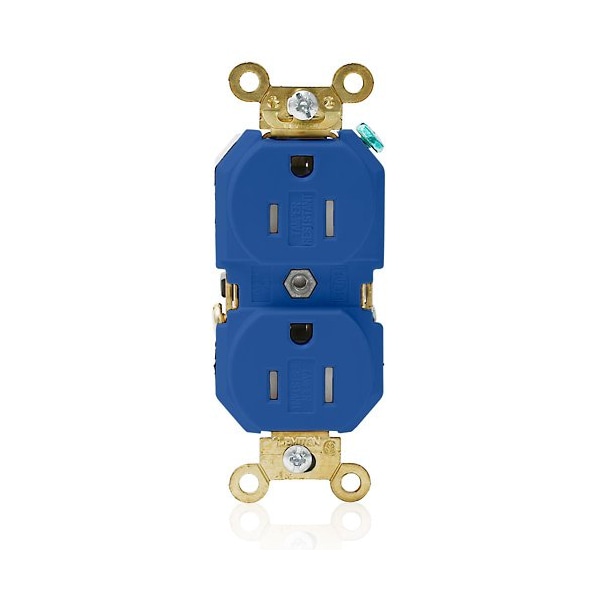

Shop LEVITON

PlugsandReceptacles, 15A, 125VAC, Bl, Nylon

  • Mfr # 5262-SGB

  • Zoro # G122586700

product price:
$
30.99
/ea

Key Features

Standards
CSA, FULS Marking, UL
Flange Type
Non-Flanged
Grounding
Grounded
NEMA Receptacle Configuration
5-15R
Overall Depth
1.3 in
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5262-SGB
Zoro #
G122586700
UPC #
78477957028
Country of Origin
Mexico

Dimensions

Overall Depth
1.3 in
Face Plate Width
1.5 in
Face Plate Height
2.8 in
Maximum Wire Size
10 AWG
Mount Hole Center-to-Center Height
3.3 in
Minimum Wire Size
14 AWG

Details

Standards
CSA, FULS Marking, UL
Flange Type
Non-Flanged
Grounding
Grounded
NEMA Receptacle Configuration
5-15R
Number of Wires
3
For Environment
Food and Beverage, Oily/Greasy
Minimum Operating Temperature
-40 Degrees C
Number of Gangs
1
Voltage Rating
125V AC
IP Rating
Not Rated
Shrouded
No
AFCI
No
Number of Wall Plates Included
0
Wire Connection Type
Screw Terminals
NEMA Enclosure Rating
Not Rated
Grade
Federal Specification
Polarized
Yes
Connection Orientation
Straight
Number of Poles
2
Horsepower Rating
1/2 hp
Housing Material
Nylon
Mount Type
Flush
Item
Plugs and Receptacles
GFCI
No
Resistance Properties
Tamper Resistant
Surge Protection
No
Receptacle Type
Duplex
Market
Industrial
Cover Type
No Cover
Wiring Method
Back/Side
Maximum Operating Temperature
75 Degrees C
Features
Smooth Face
Number of Outlets
2
UL 94 Flammability Rating
V-2
Contact Material
Brass
Phase
Single
Current Rating
15 A
Housing Color
Blue

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Blue, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
