Shop LEVITON

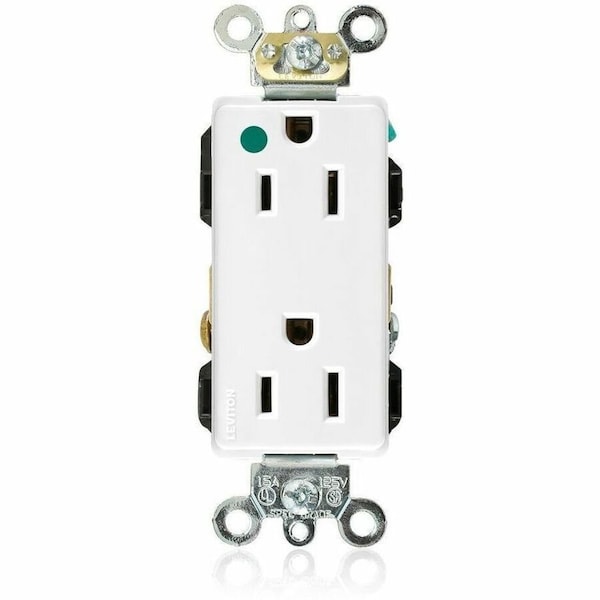

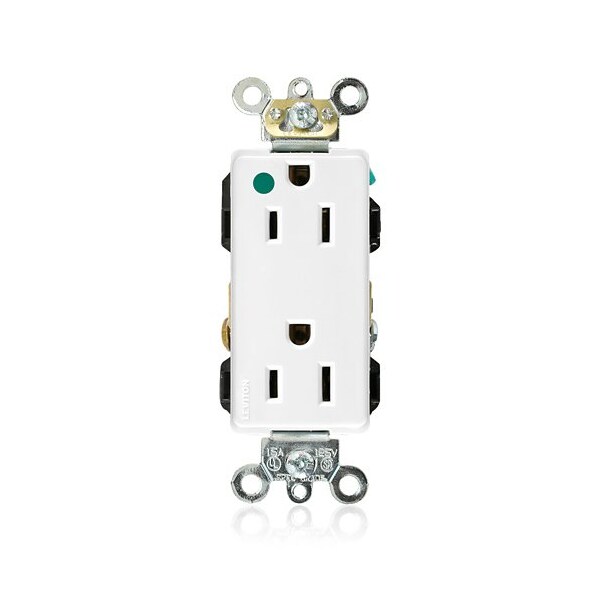

PlugsandReceptacles, 15A, 125VAC, Wht, Nylon

  • Mfr # 16262-HGW

  • Zoro # G322588085

product price:
$
19.45
/ea

Key Features

For Environment
Food and Beverage, Oily/Greasy
Housing Color
White
Grounding
Grounded
Number of Poles
2
Polarized
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16262-HGW
Zoro #
G322588085
UPC #
78477818725
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Width
1.3 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Height
2.6 in
Maximum Wire Size
10 AWG
Minimum Wire Size
14 AWG

Details

For Environment
Food and Beverage, Oily/Greasy
Housing Color
White
Grounding
Grounded
Number of Poles
2
Polarized
Yes
Receptacle Type
Duplex
UL 94 Flammability Rating
V-2
Voltage Rating
125V AC
Mount Type
Flush
NEMA Enclosure Rating
Not Rated
Phase
Single
Maximum Operating Temperature
60 Degrees C
Features
Smooth Face
Number of Gangs
1
Item
Plugs and Receptacles
Number of Outlets
2
Horsepower Rating
1/2 hp
Wiring Method
Back/Side
Flange Type
Non-Flanged
Surge Protection
No
Shrouded
No
AFCI
No
Contact Material
Brass
Standards
CSA, FULS Marking, UL
Number of Wires
3
Current Rating
15 A
Market
Industrial
Housing Material
Nylon
Connection Orientation
Straight
NEMA Receptacle Configuration
5-15R
Minimum Operating Temperature
-40 Degrees C
Grade
General Use
Wire Connection Type
Screw Terminals
GFCI
No
IP Rating
Not Rated
Number of Wall Plates Included
0
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
