Shop LEVITON

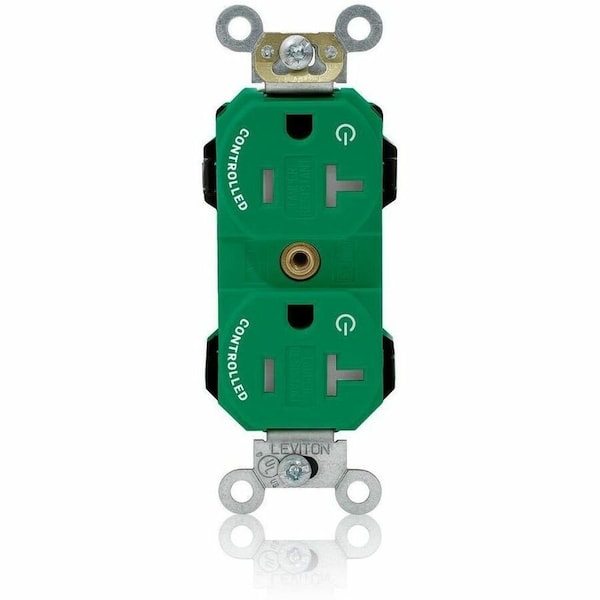

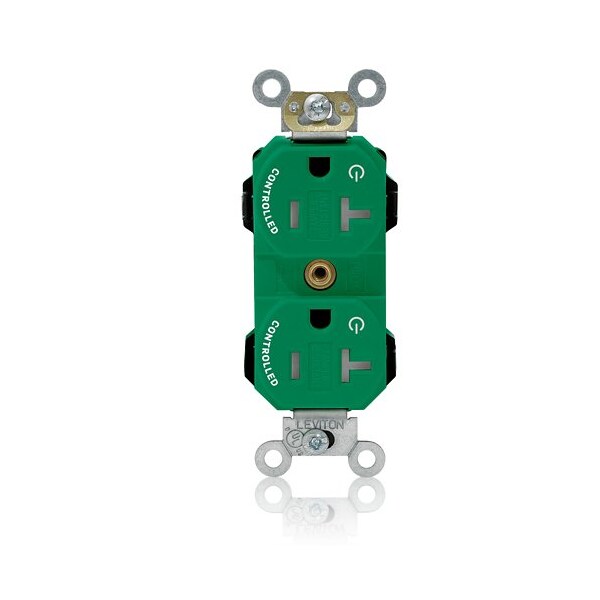

PlugsandReceptacles, 20A, 125VAC, Grn, Nylon

  • Mfr # MT563-2SN

  • Zoro # G322587439

product price:
$
22.29
/ea

Key Features

Number of Poles
2
Number of Gangs
1
Phase
Single
Face Plate Width
1.5 in
Housing Color
Green
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
MT563-2SN
Zoro #
G322587439
UPC #
78477892145
Country of Origin
Mexico

Dimensions

Face Plate Width
1.5 in
Mount Hole Center-to-Center Height
3.3 in

Details

Number of Poles
2
Number of Gangs
1
Phase
Single
Housing Color
Green
Voltage Rating
125V AC
Number of Outlets
2
Polarized
Yes
IP Rating
Not Rated
Standards
CSA, FULS Marking, UL
Housing Material
Nylon
NEMA Enclosure Rating
Not Rated
Resistance Properties
Tamper Resistant
Connection Orientation
Straight
Flange Type
Non-Flanged
Shrouded
No
Item
Plugs and Receptacles
AFCI
No
Receptacle Type
Duplex
GFCI
No
NEMA Receptacle Configuration
5-20R
Cover Type
No Cover
Wire Connection Type
Snap-In Module
Mount Type
Flush
Surge Protection
No
Grounding
Grounded
Features
Smooth Face
Maximum Operating Temperature
60 Degrees C
Minimum Operating Temperature
-40 Degrees C
For Environment
Food and Beverage, Oily/Greasy
Horsepower Rating
1 hp
Grade
General Use
Current Rating
20 A
Market
Industrial
Number of Wall Plates Included
0
Number of Wires
3
Wiring Method
Back
Contact Material
Brass

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Green, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Tamper Resistant, Standards CSA, FULS Marking, UL
