Shop LEVITON

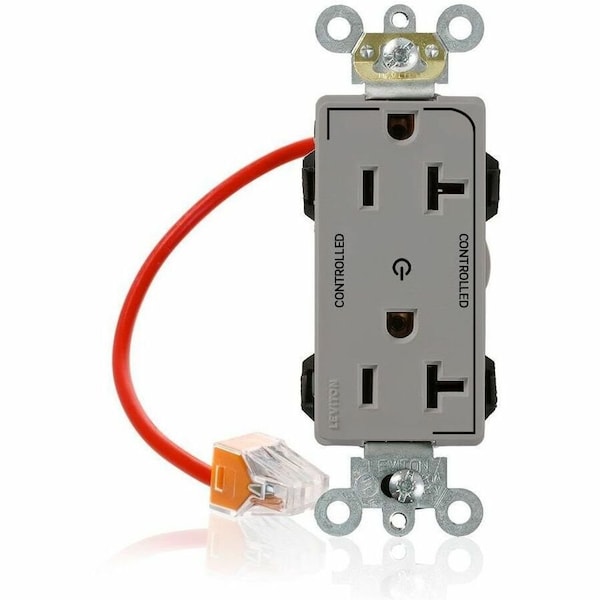

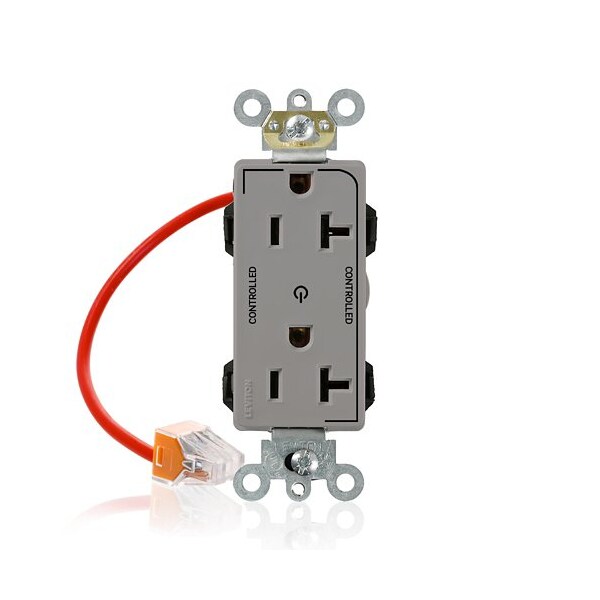

PlugsandReceptacles, 20A, 125VAC, Gry, Nylon

  • Mfr # M1636-2SG

  • Zoro # G622587078

product price:
$
19.89
/ea

Key Features

Receptacle Type
Duplex
Connection Orientation
Straight
Housing Color
Gray
Polarized
Yes
Voltage Rating
125V AC
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1636-2SG
Zoro #
G622587078
UPC #
78477763001
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Receptacle Type
Duplex
Connection Orientation
Straight
Housing Color
Gray
Polarized
Yes
Voltage Rating
125V AC
Grounding
Grounded
Number of Gangs
1
Wire Connection Type
Snap-In Module
Current Rating
20 A
Surge Protection
No
NEMA Receptacle Configuration
5-20R
IP Rating
Not Rated
Number of Wires
3
Maximum Operating Temperature
60 Degrees C
Number of Poles
2
Number of Outlets
2
NEMA Enclosure Rating
Not Rated
Number of Wall Plates Included
0
Horsepower Rating
1 hp
Minimum Operating Temperature
-40 Degrees C
Standards
CSA, FULS Marking, UL
Shrouded
No
GFCI
No
Phase
Single
Housing Material
Nylon
Flange Type
Non-Flanged
Market
Industrial
Contact Material
Brass
Cover Type
No Cover
Wiring Method
Back
Mount Type
Flush
Features
Smooth Face
AFCI
No
Grade
General Use
For Environment
Food and Beverage, Oily/Greasy
Item
Plugs and Receptacles

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Gray, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
