Shop LEVITON

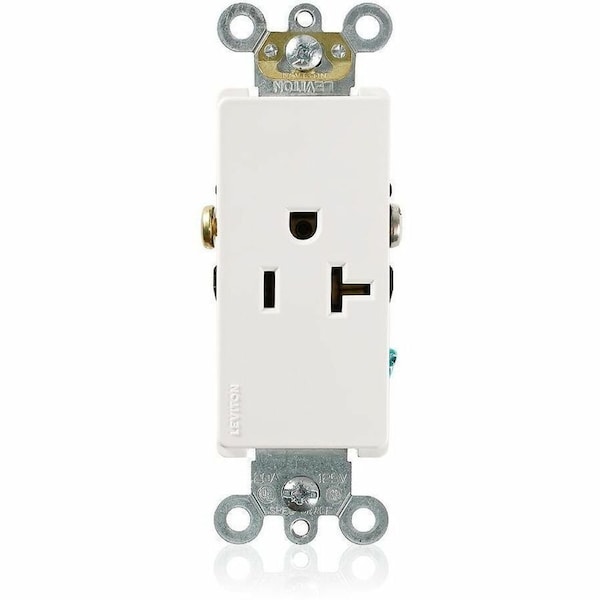

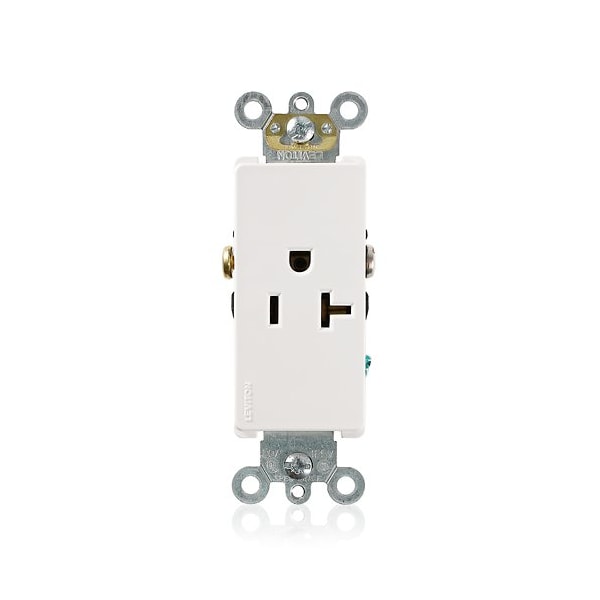

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # 16351-W

  • Zoro # G622587030

product price:
$
9.49
/ea

Key Features

Phase
Single
Flange Type
Non-Flanged
GFCI
No
Connection Orientation
Straight
Grounding
Grounded
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
16351-W
Zoro #
G622587030
UPC #
78477473863
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Face Plate Height
2.6 in
Face Plate Width
1.4 in
Minimum Wire Size
14 AWG
Mount Hole Center-to-Center Height
3.3 in
Maximum Wire Size
10 AWG

Details

Phase
Single
Flange Type
Non-Flanged
GFCI
No
Connection Orientation
Straight
Grounding
Grounded
NEMA Receptacle Configuration
5-20R
Wire Connection Type
Screw Terminals
Item
Plugs and Receptacles
Grade
General Use
Surge Protection
No
UL 94 Flammability Rating
V-2
Housing Color
White
Number of Wires
3
IP Rating
Not Rated
Minimum Operating Temperature
-40 Degrees C
Number of Wall Plates Included
0
Market
Commercial
Number of Outlets
1
Features
Smooth Face
Polarized
Yes
Wiring Method
Back/Side
NEMA Enclosure Rating
Not Rated
Number of Poles
2
For Environment
Food and Beverage, Oily/Greasy
Maximum Operating Temperature
60 Degrees C
Number of Gangs
1
Horsepower Rating
1 hp
Housing Material
Nylon
Current Rating
20 A
Standards
CSA, FULS Marking, UL
Mount Type
Flush
Receptacle Type
Single
Shrouded
No
Cover Type
No Cover
Voltage Rating
125V AC
Contact Material
Brass
AFCI
No

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
