Shop LEVITON

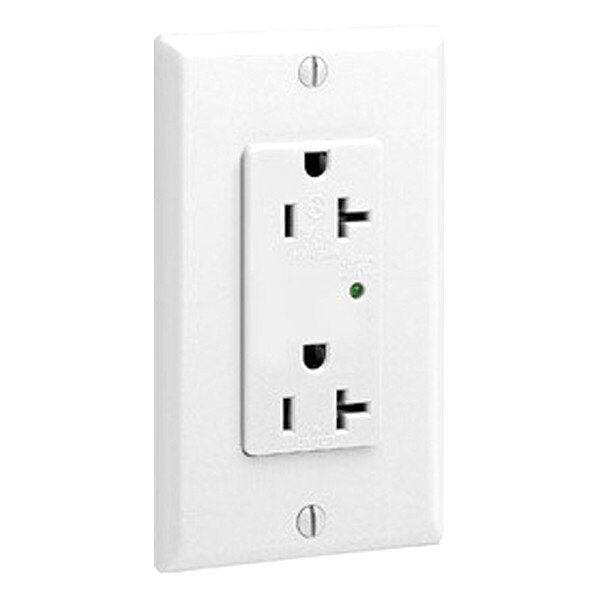

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # 5380-W

  • Zoro # G022586404

product price:
$
52.39
/ea
Zoro's best price: not eligible for any other offers or promotions

Key Features

Voltage Rating
125V AC
NEMA Enclosure Rating
Not Rated
Number of Wall Plates Included
0
Number of Poles
2
Polarized
Yes
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Details

MFR #
5380-W
Zoro #
G022586404
UPC #
78477009239
Country of Origin
Mexico
Voltage Rating
125V AC
NEMA Enclosure Rating
Not Rated
Number of Wall Plates Included
0
Number of Poles
2
Polarized
Yes
Mount Type
Flush
Wiring Method
Back/Side
Number of Gangs
1
Receptacle Type
Duplex
Maximum Surge Current
27 kA
Horsepower Rating
1 hp
Grounding
Grounded
NEMA Receptacle Configuration
5-20R
Minimum Operating Temperature
-40 Degrees C
Contact Material
Brass
Features
Indicator Light
Connection Orientation
Straight
Wire Connection Type
Screw Terminals
Number of Wires
3
Standards
CSA, FULS Marking, UL
Flange Type
Non-Flanged
Item
Plugs and Receptacles
Current Rating
20 A
Number of Outlets
2
GFCI
No
Market
Commercial
Maximum Operating Temperature
60 Degrees C
IP Rating
Not Rated
Phase
Single
Grade
General Use
Surge Protection
Yes
Housing Color
White
Shrouded
No
UL 94 Flammability Rating
V-2
For Environment
Food and Beverage, Oily/Greasy
Cover Type
No Cover
AFCI
No
Housing Material
Nylon

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
