Shop LEVITON

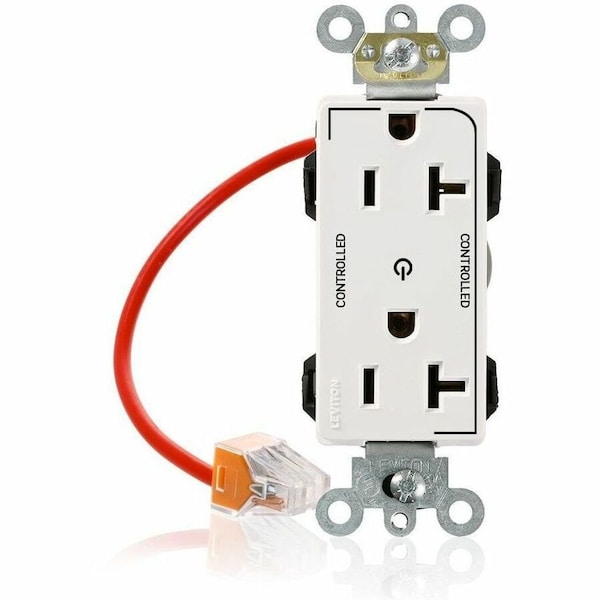

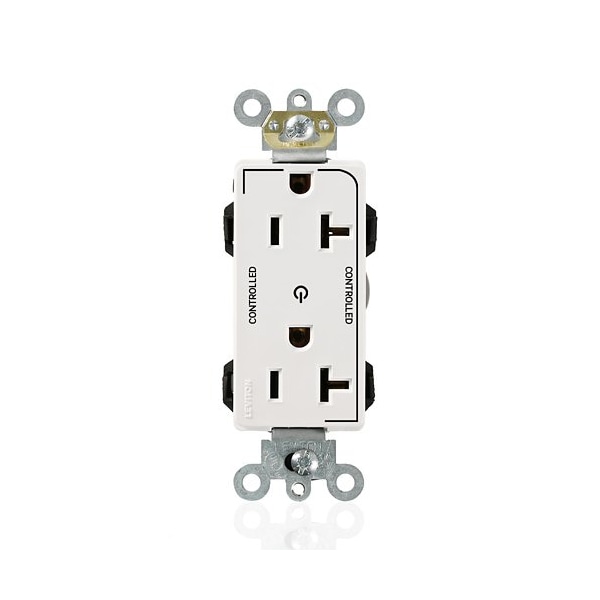

PlugsandReceptacles, 20A, 125VAC, Wht, Nylon

  • Mfr # M1636-2SW

  • Zoro # G922586306

product price:
$
19.89
/ea

Key Features

Contact Material
Brass
Number of Outlets
2
Wire Connection Type
Snap-In Module
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
M1636-2SW
Zoro #
G922586306
UPC #
78477762974
Country of Origin
Mexico

Dimensions

Mount Hole Center-to-Center Height
3.3 in

Details

Contact Material
Brass
Number of Outlets
2
Wire Connection Type
Snap-In Module
For Environment
Food and Beverage, Oily/Greasy
Connection Orientation
Straight
Number of Wall Plates Included
0
Number of Wires
3
Current Rating
20 A
Receptacle Type
Duplex
Features
Smooth Face
Phase
Single
Maximum Operating Temperature
60 Degrees C
Surge Protection
No
Standards
CSA, FULS Marking, UL
AFCI
No
Wiring Method
Back
Grounding
Grounded
Item
Plugs and Receptacles
Number of Gangs
1
NEMA Enclosure Rating
Not Rated
Voltage Rating
125V AC
Flange Type
Non-Flanged
Housing Material
Nylon
Market
Industrial
GFCI
No
Horsepower Rating
1 hp
Mount Type
Flush
Polarized
Yes
Number of Poles
2
Housing Color
White
IP Rating
Not Rated
Shrouded
No
NEMA Receptacle Configuration
5-20R
Grade
General Use
Minimum Operating Temperature
-40 Degrees C
Cover Type
No Cover

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 20 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color White, Housing Material Nylon, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-20R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Duplex, Resistance Properties Not Applicable, Standards CSA, FULS Marking, UL
