Shop LEVITON

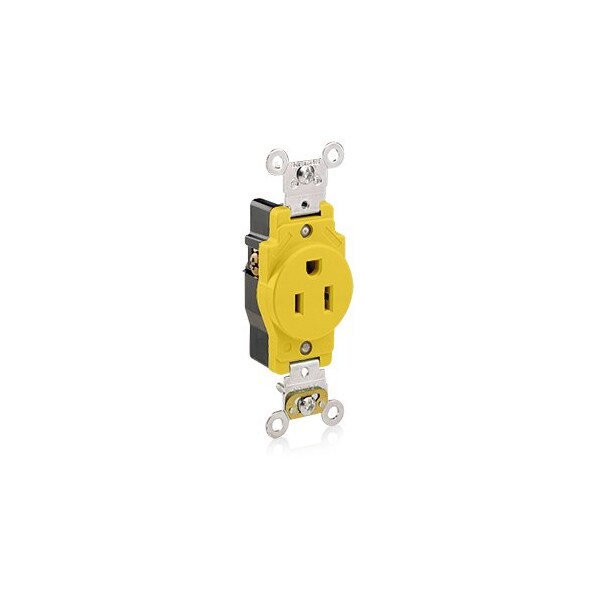

Plugs&Rcptcls, 15A, 125VAC, Ylw, TPV

  • Mfr # 5261-CR

  • Zoro # G222587171

product price:
$
31.79
/ea

Key Features

Number of Outlets
1
Contact Material
Nickel-Plated Brass
For Environment
Food and Beverage, Oily/Greasy
Overall Depth
1.1 in
Features
Smooth Face
See all product information
Unlock 30-day payment terms
Unlock 30-day payment terms
Business customers can apply for Net 30—no fees, no interest, fast approval. Terms apply.
Create Account
Get 10% off your order
Get 10% off your order
Sign up for our email list and receive your promo code via email.

Specifications

Product Information

MFR #
5261-CR
Zoro #
G222587171
UPC #
78477125120
Country of Origin
Mexico

Dimensions

Overall Depth
1.1 in
Maximum Wire Size
10 AWG
Face Plate Height
2.4 in
Mount Hole Center-to-Center Height
3.3 in
Face Plate Width
1.4 in
Minimum Wire Size
18 AWG

Details

Number of Outlets
1
Contact Material
Nickel-Plated Brass
For Environment
Food and Beverage, Oily/Greasy
Features
Smooth Face
Maximum Operating Temperature
60 Degrees C
NEMA Receptacle Configuration
5-15R
Number of Wires
3
Housing Material
Santoprene TPV
NEMA Enclosure Rating
Not Rated
Current Rating
15 A
AFCI
No
Housing Color
Yellow
Horsepower Rating
1/2 hp
Standards
CSA, FULS Marking, UL
Market
Industrial
Wiring Method
Back/Side
Minimum Operating Temperature
-40 Degrees C
Item
Plugs and Receptacles
Grounding
Grounded
UL 94 Flammability Rating
V-2
IP Rating
Not Rated
Number of Gangs
1
Wire Connection Type
Screw Terminals
Number of Poles
2
Number of Wall Plates Included
0
Shrouded
No
Phase
Single
Cover Type
No Cover
Voltage Rating
125V AC
Connection Orientation
Straight
Mount Type
Flush
GFCI
No
Resistance Properties
Corrosion Resistant
Receptacle Type
Single
Flange Type
Non-Flanged
Surge Protection
No
Grade
General Use
Polarized
Yes

Description

Plugs and Receptacles, Connection Orientation Straight, Cover Type No Cover, Current Rating 15 A, GFCI No, Grounding Grounded, Hazardous Location Specification Not Applicable, Housing Color Yellow, Housing Material Santoprene TPV, Mount Type Flush, NEMA Enclosure Rating Not Rated, NEMA Receptacle Configuration 5-15R, Number of Gangs 1, Number of Poles 2, Number of Wires 3, Phase Single, Polarized Yes, Receptacle Type Single, Resistance Properties Corrosion Resistant
